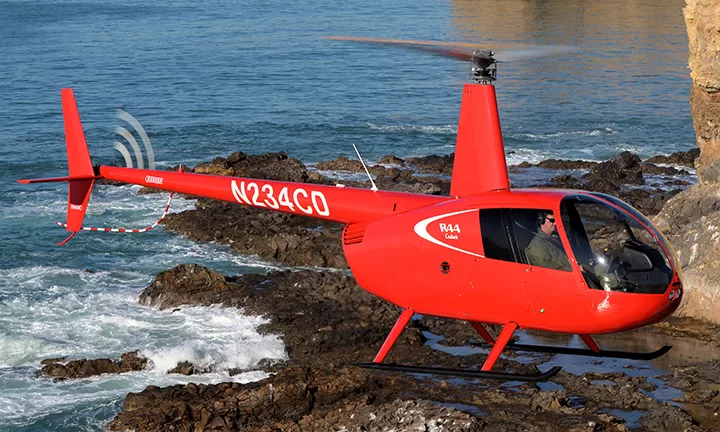

R44 Cadet Helicopter

p_0001

The two-seat Cadet is a versatile helicopter ideally suited for flight schools and operators that want the economy of a small helicopter without sacrificing the power and performance of a large helicopter. The Cadet has the same airframe, rotor system and Lycoming O-540 engine as the proven R44 Raven I. The differences are the Cadet’s aft compartment has been reconfigured for cargo, the maximum gross weight is reduced to 2200 lb and the engine power is derated to 210 take-off and 185 continuous. The lower weight and derated power provide increased performance margins at high altitudes and lengthen the time between overhaul to 2400 hours. Cadets feature the latest in Robinson technology including streamlined instrument panels and crashworthy bladder fuel tanks.

SPECIFICATIONS

SPECIFICATION R44 CADET R44 CADET with FIXED FLOATS
Engine Lycoming O-540, six cylinder, carbureted Lycoming O-540, six cylinder, carbureted
Horsepower Derated to 210 for takeoff & 185 continuous Derated to 210 for takeoff & 185 continuous
Maximum Gross Weight 2200 lb (998 kg) 2200 lb (998 kg)
Approximate Empty Weight(incl. oil & standard avionics) 1437 lb (652 kg) 1487 lb (674 kg)
Standard Fuel (29.5 gal) 177 lb (80 kg) 177 lb (80 kg)
Auxiliary Fuel (17.0 gal) 102 lb (46 kg) 102 lb (46 kg)
Pilot, Passenger, and Baggage (with maximum fuel) 484 lb (220 kg) 434 lb (197 kg)
Cruise Speed at Maximum Gross Weight up to 107 kts (198 km/h) up to 100 kts (185 km/h)
Maximum Range (no reserve) approx 300 nm (550 km) approx 300 nm (550 km)
Hover Ceiling IGE at Maximum Gross Weight 8750 ft @ 2200 lb 8750 ft @ 2200 lb
Hover Ceiling OGE at Maximum Gross Weight 5250 ft @ 2200 lb 5250 ft @ 2200 lb
Rate of Climb over 1000 fpm over 1000 fpm
Maximum Operating Altitude 14,000 ft 14,000 ft
Electrical System 28 volt 28 volt
