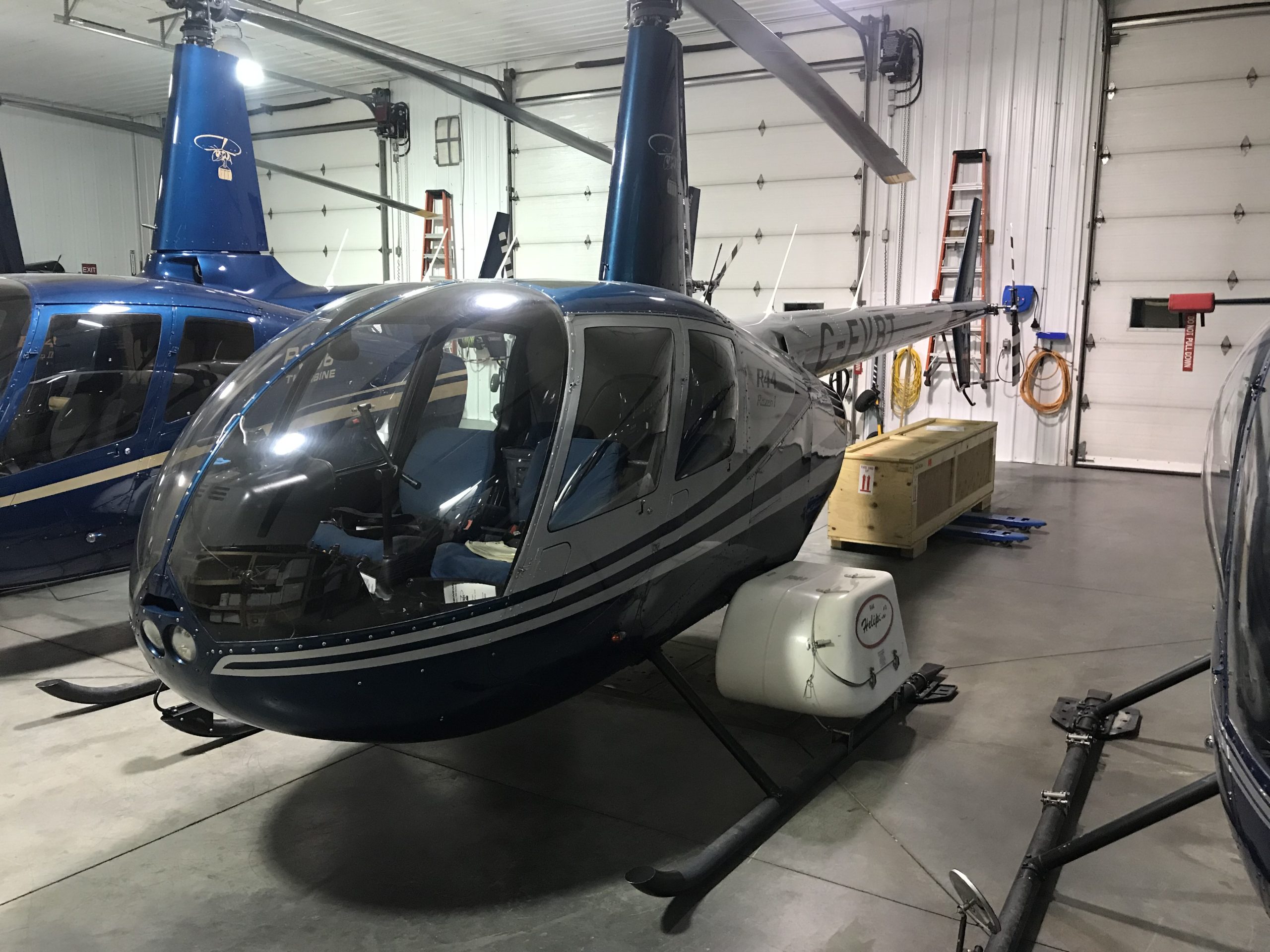

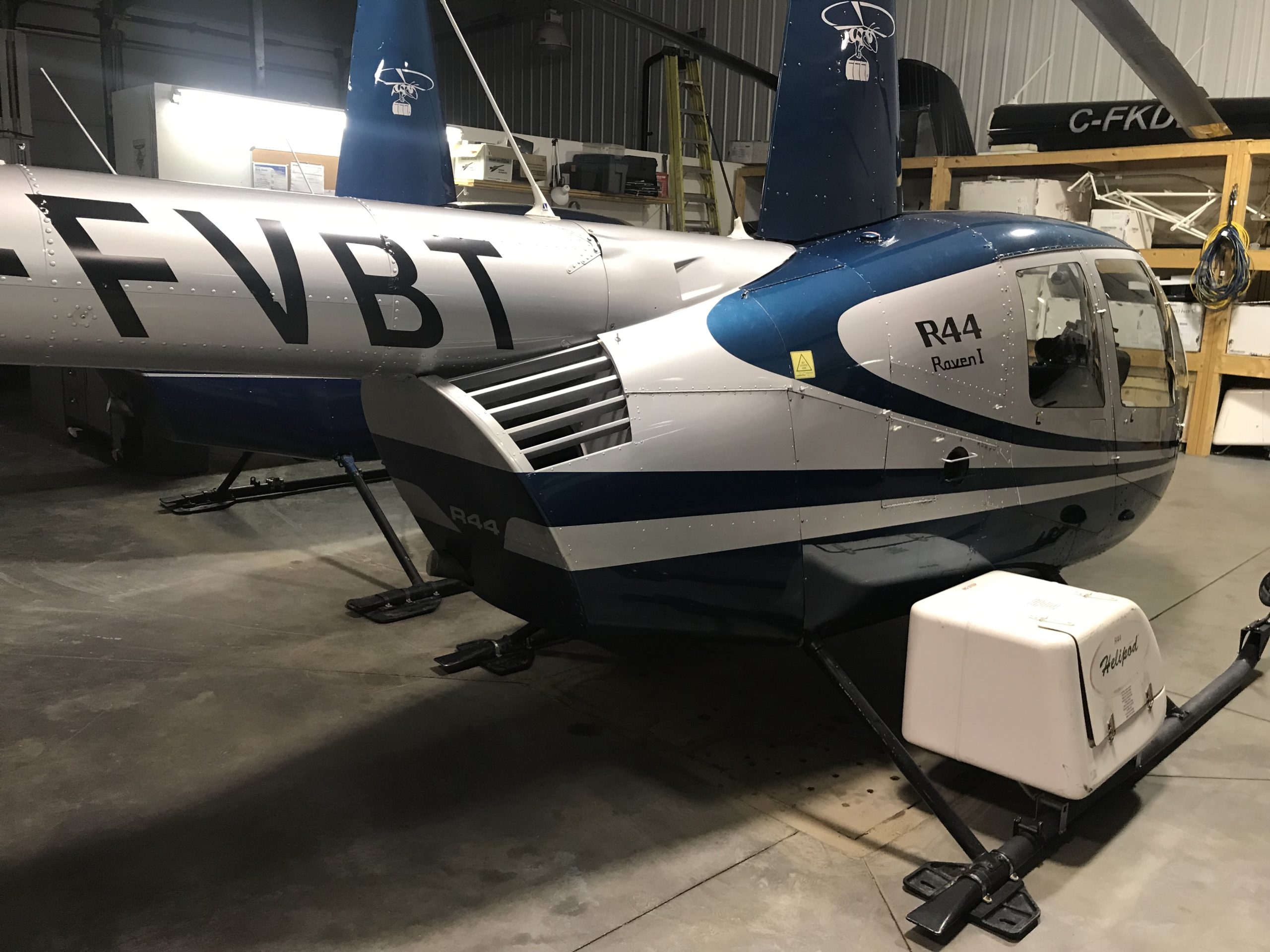

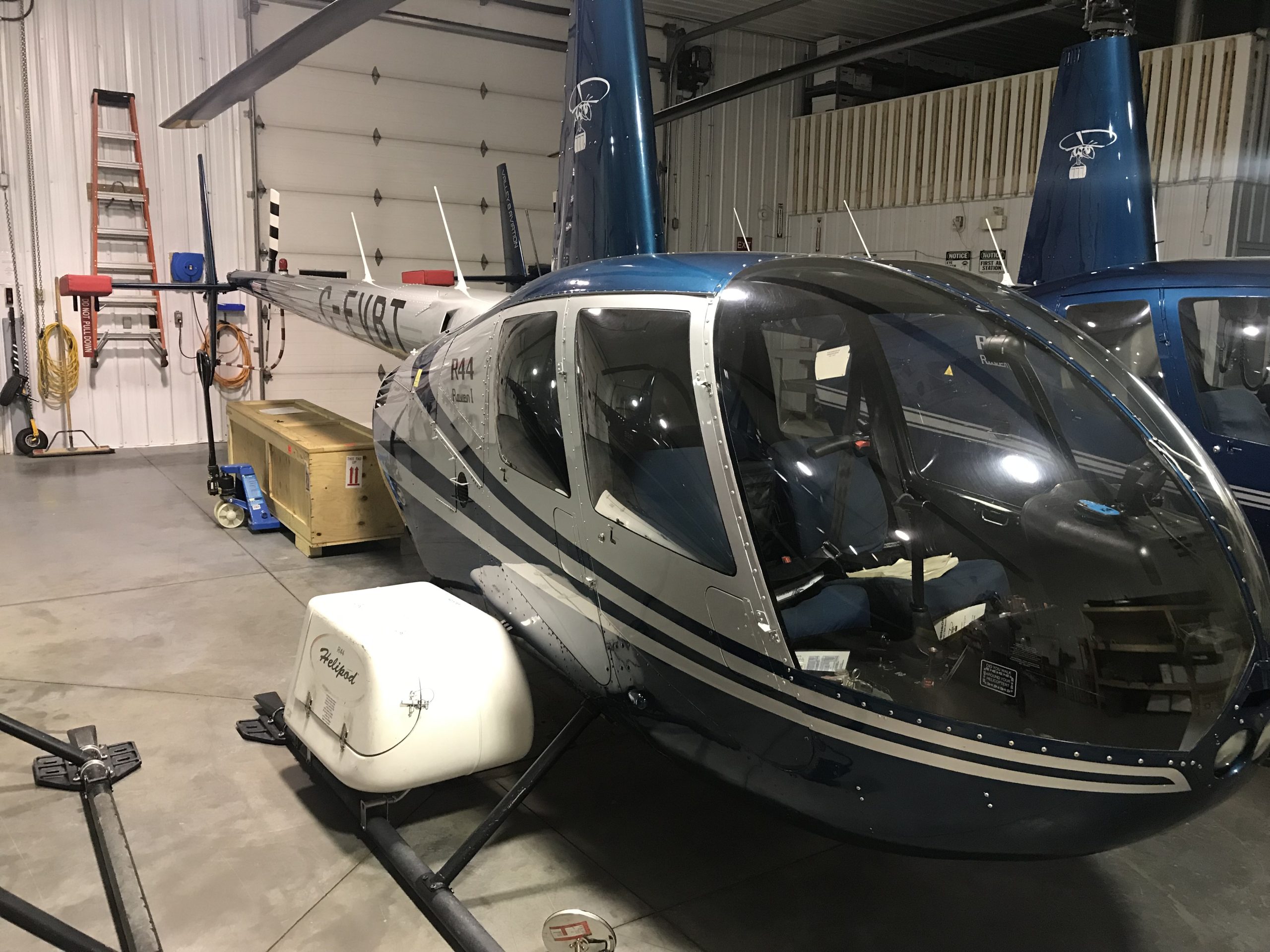

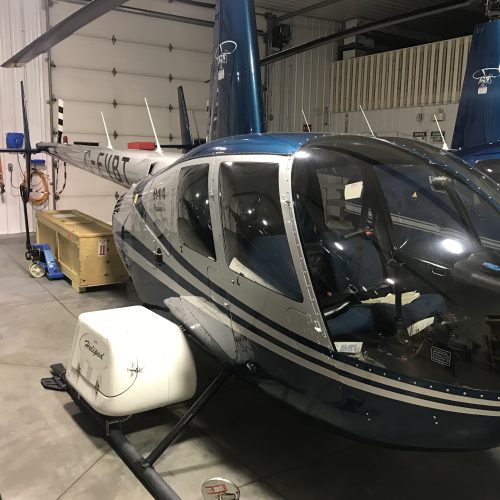

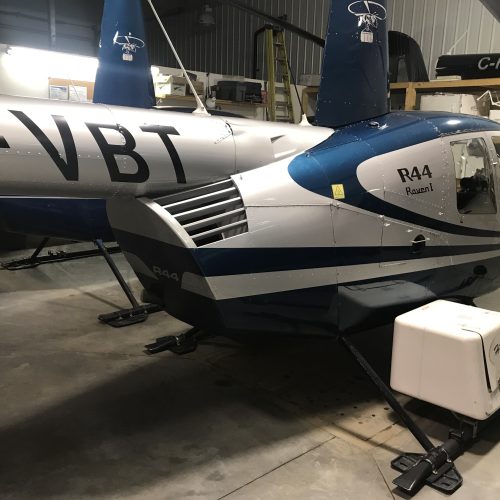

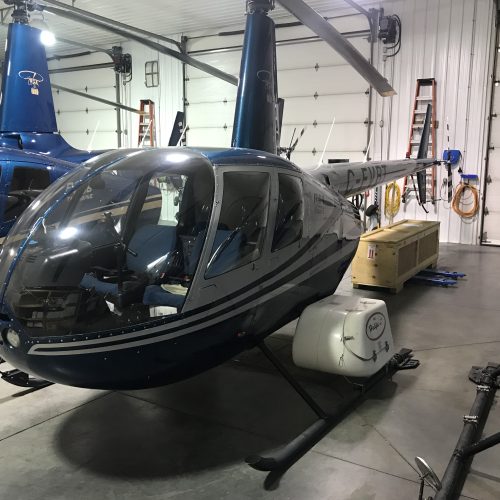

2008 R44 Raven I C-FVBT SOLD


$
  • Year: 2008

  • Manufacturer: Robinson Helicopter Company

  • Model: R44 Raven I

  • Serial Number: 1863

  • Total Time: 4370

  • Condition: Used

  • Location: Manning, AB

  • Engine: Lycoming O-540

  • Exterior Color: Blue with Silver Astro Trim

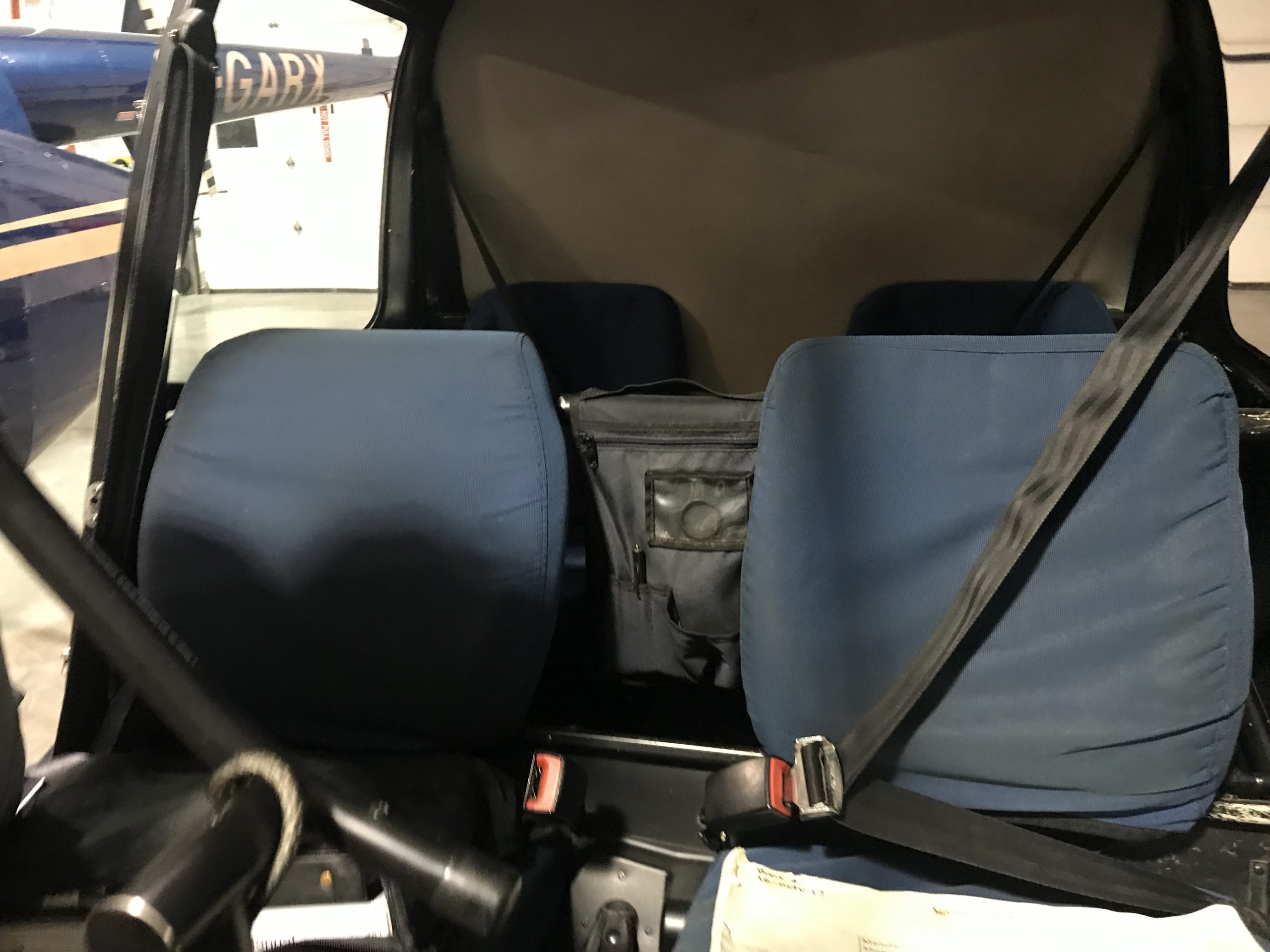

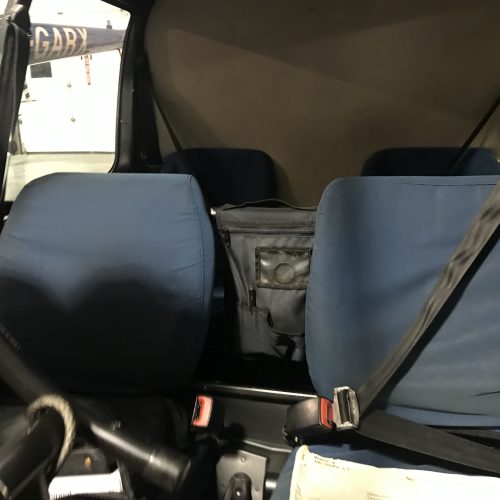

  • Interior Color: Fabric Grey


Overview

Now available is a 2008 R44 Raven 1.  This Raven 1 is listed for sale at a price that most other Raven 1’s will sell for with no time left.

This helicopter has no damage history or accidents and has been commercially maintained.  The original tailcone was replaced with a new one because it had the gearbox mounting inserts stripped. It made more economical sense to replace tail boom than have it repaired at RHC.  The tailcone has approx. 3040 hours remaining.

The engine has extra time because they swapped it with another R44 during overhaul that had a leaking issue.  This engine is leak free and has approx. 665 hours remaining. The previous swashplate seized shortly after overhaul so it was also replaced with a new one. There have been no issues since and there is approx.. 1616 hours remaining.

The tail rotor gearbox was replaced after overhaul due to an ongoing leak that RHC could not repair.  It was a warranty replacement and has approx. 855 hours remaining.  The tail rotor blades and hub were replaced because a rock cracked a blade. They replaced the assembly and has approx.. 1470 hours remaining.

If you require any additional information or have any questions, don’t hesitate to contact us.  403-918-5981 or [email protected]

Features

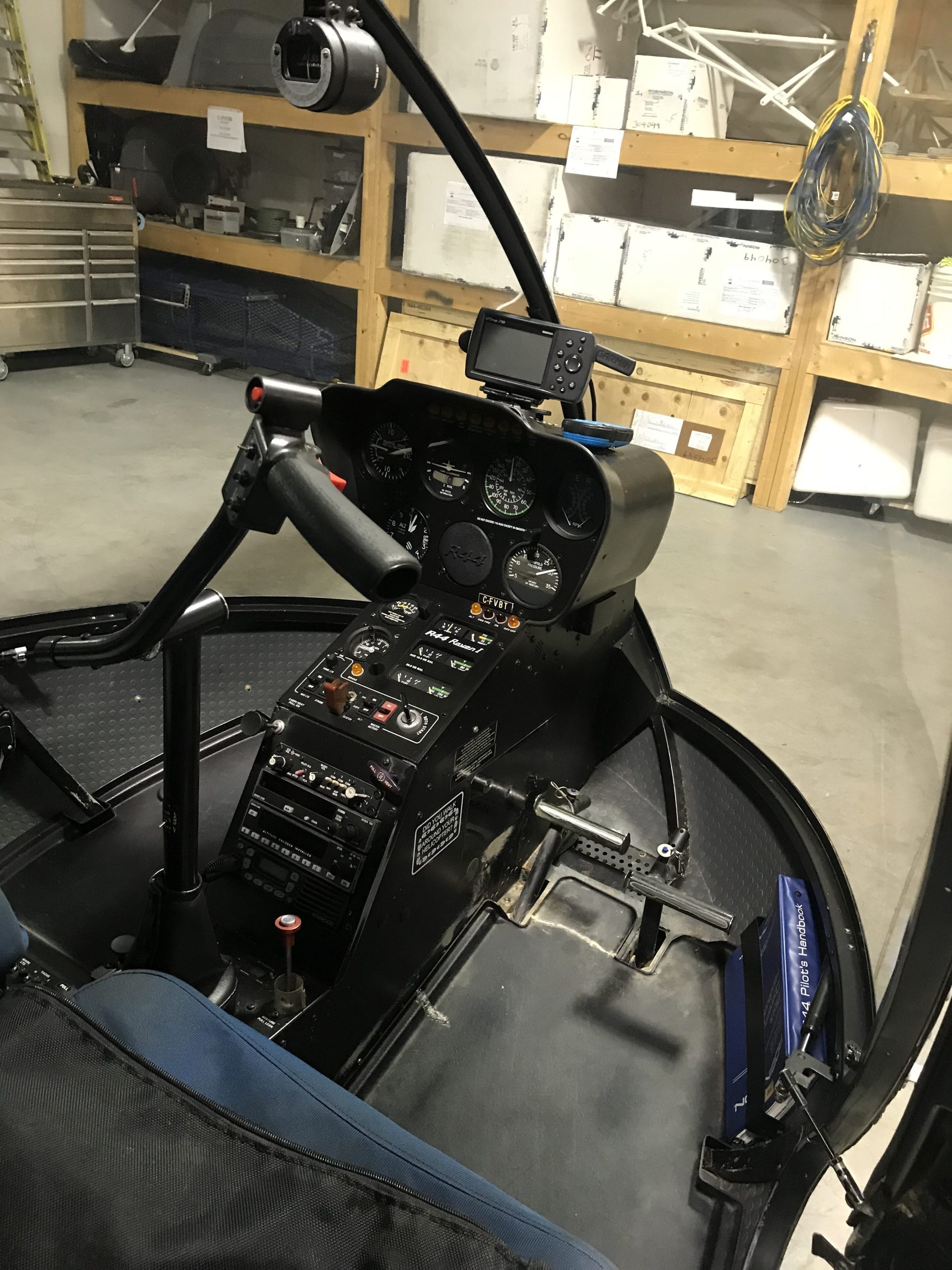

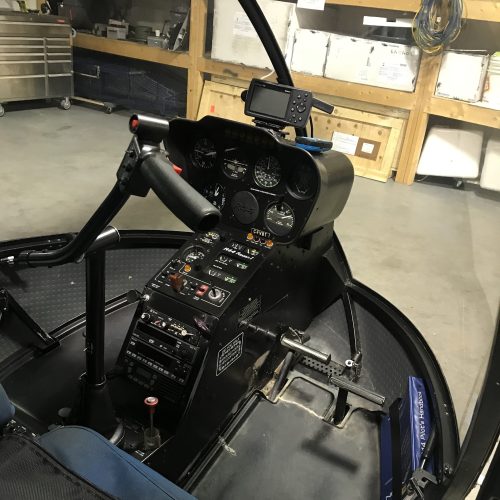

  • 7 Hole Panel
  • Bubble Windows
  • Fire Extinguisher
  • Blade Tie downs
  • Dual Controls
  • Ground Handling Wheels

Avionics

  • Turn Coordinator
  • BendixKing KY-196 Com
  • ELT - Kannad 406
  • Nat 12 Audio Controller
  • BendixKing KT 76C transponder

Technical

Specifications & Dimensions

Helicopter R44 Raven I
Engine Lycoming O-540, six cylinder, carbureted
Horsepower Derated to 225 for takeoff and 205 continuous
Maximum Gross Weight 2400 lb (1089 kg)
Approximate Empty Weight (including oil & standard avionics) 1450 lb (658 kg)
Standard Fuel (29.5 gal) 177 lb (80 kg)
Auxiliary Fuel (17.0 gal) 102 lb (46 kg)
Pilot, Passengers, and Baggage (with standard fuel) 773 lb (351 kg)
Cruise Speed at Maximum Gross Weight up to 108 kts (200 km/h)
Maximum Range (no reserve) approx 300 nm (550 km)
Hover Ceiling IGE 6400 ft @ 2400 lb
Hover Ceiling OGE 4000 ft @ 2300 lb
Rate of Climb over 1000 fpm
Maximum Operating Altitude 14,000 ft
Electrical System 28 volt t
