Overview

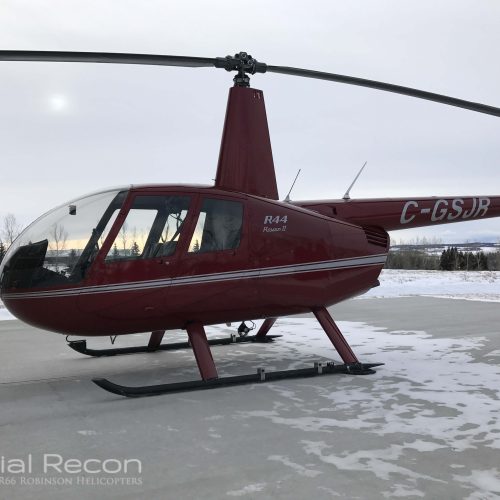

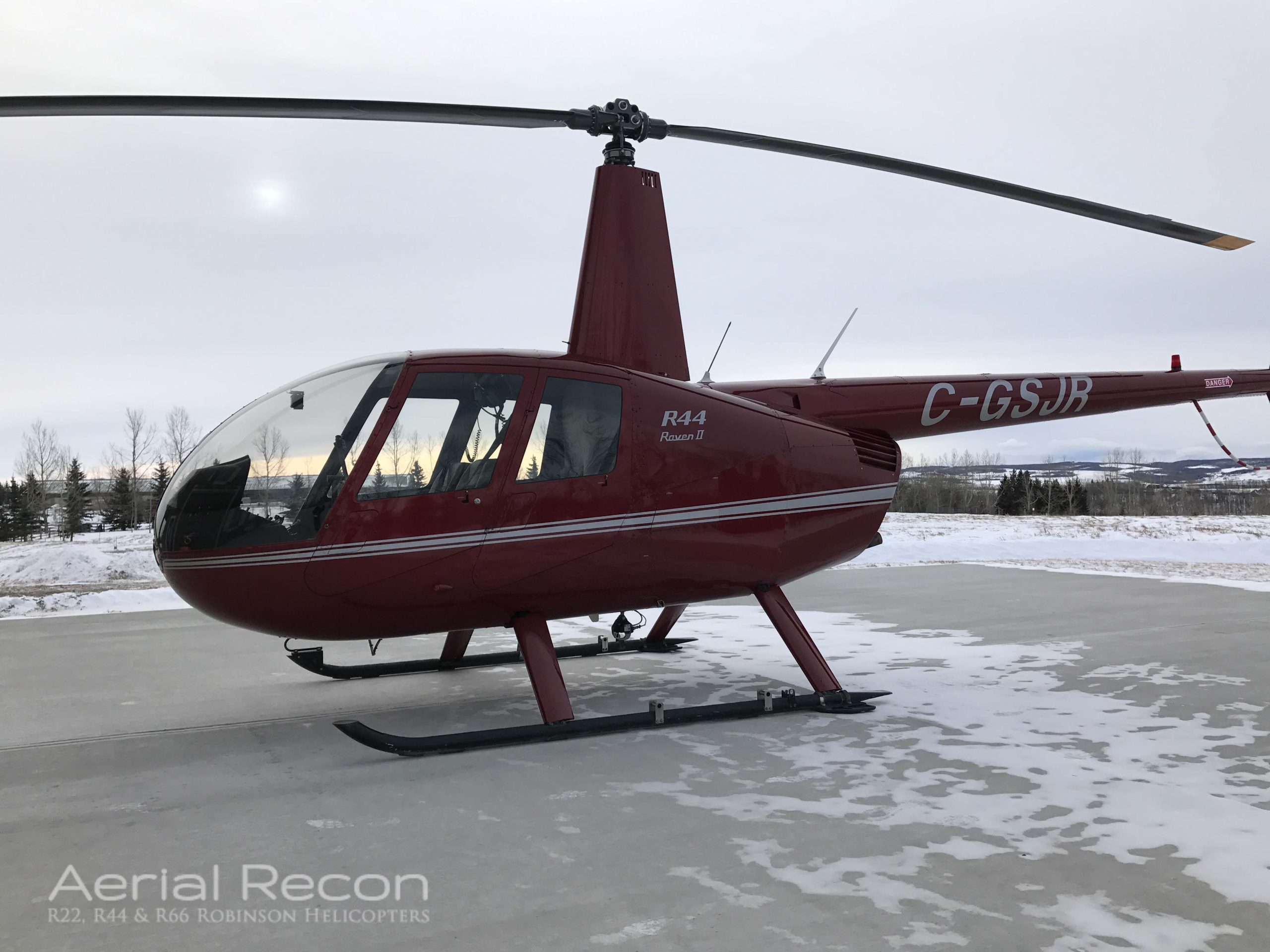

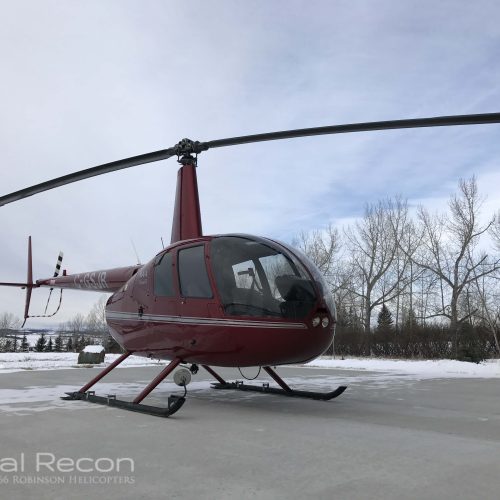

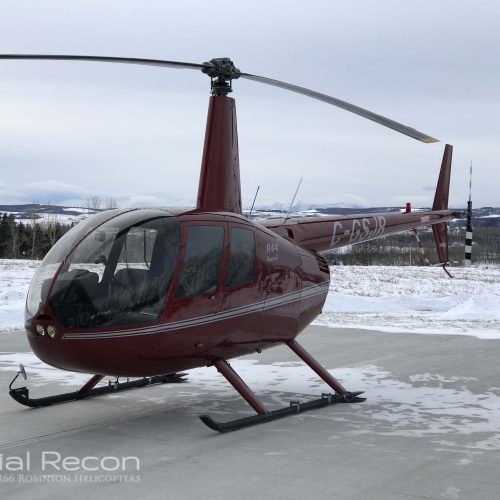

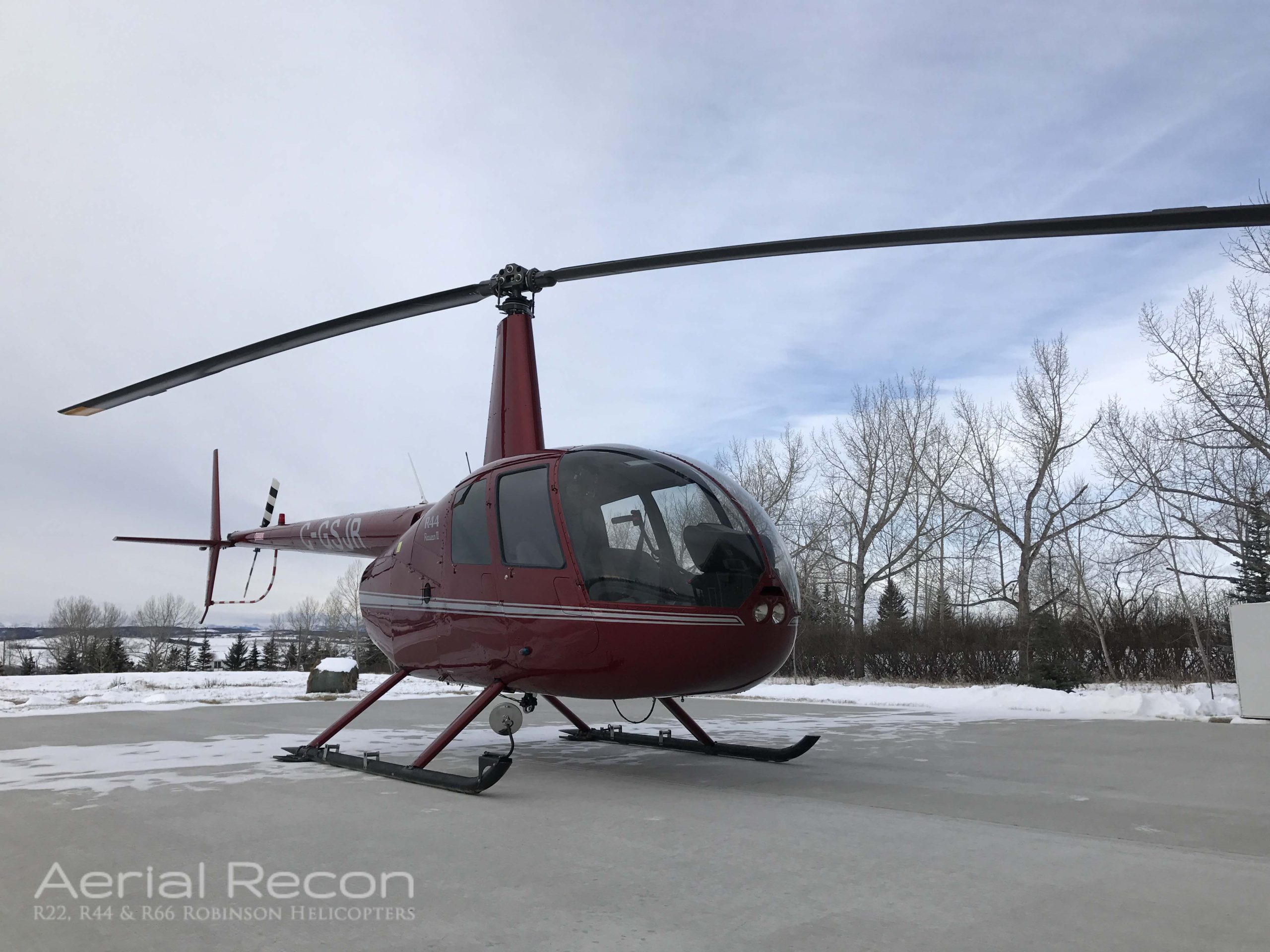

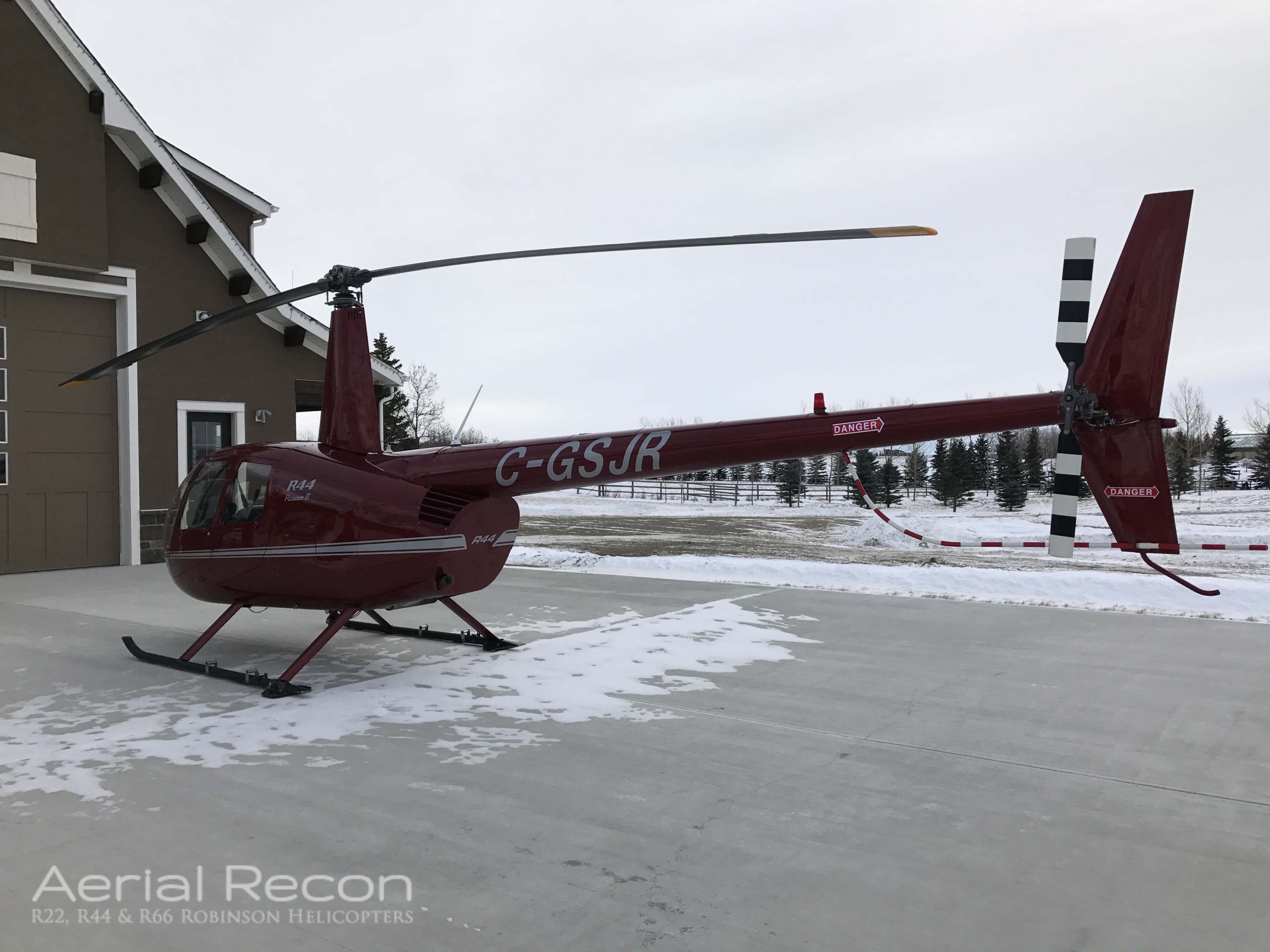

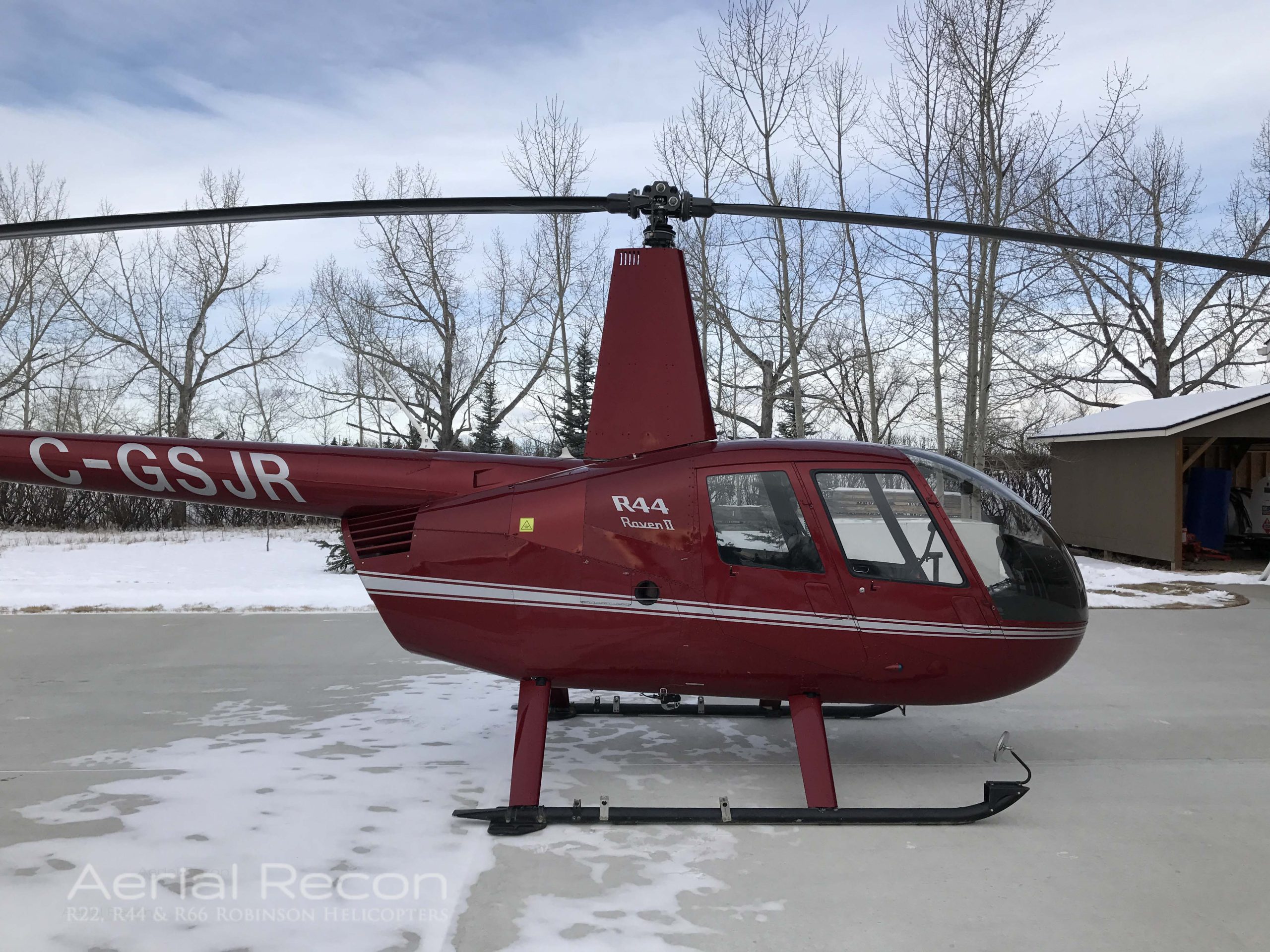

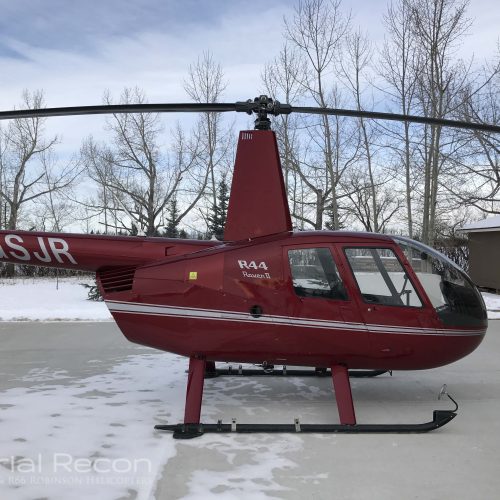

For Sale is a 2006 R44 Raven II that was overhauled in 2014. There is currently 770 hours or 9 years until the next major work is required.

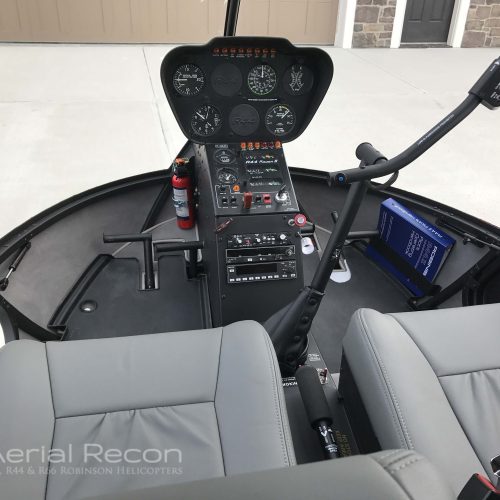

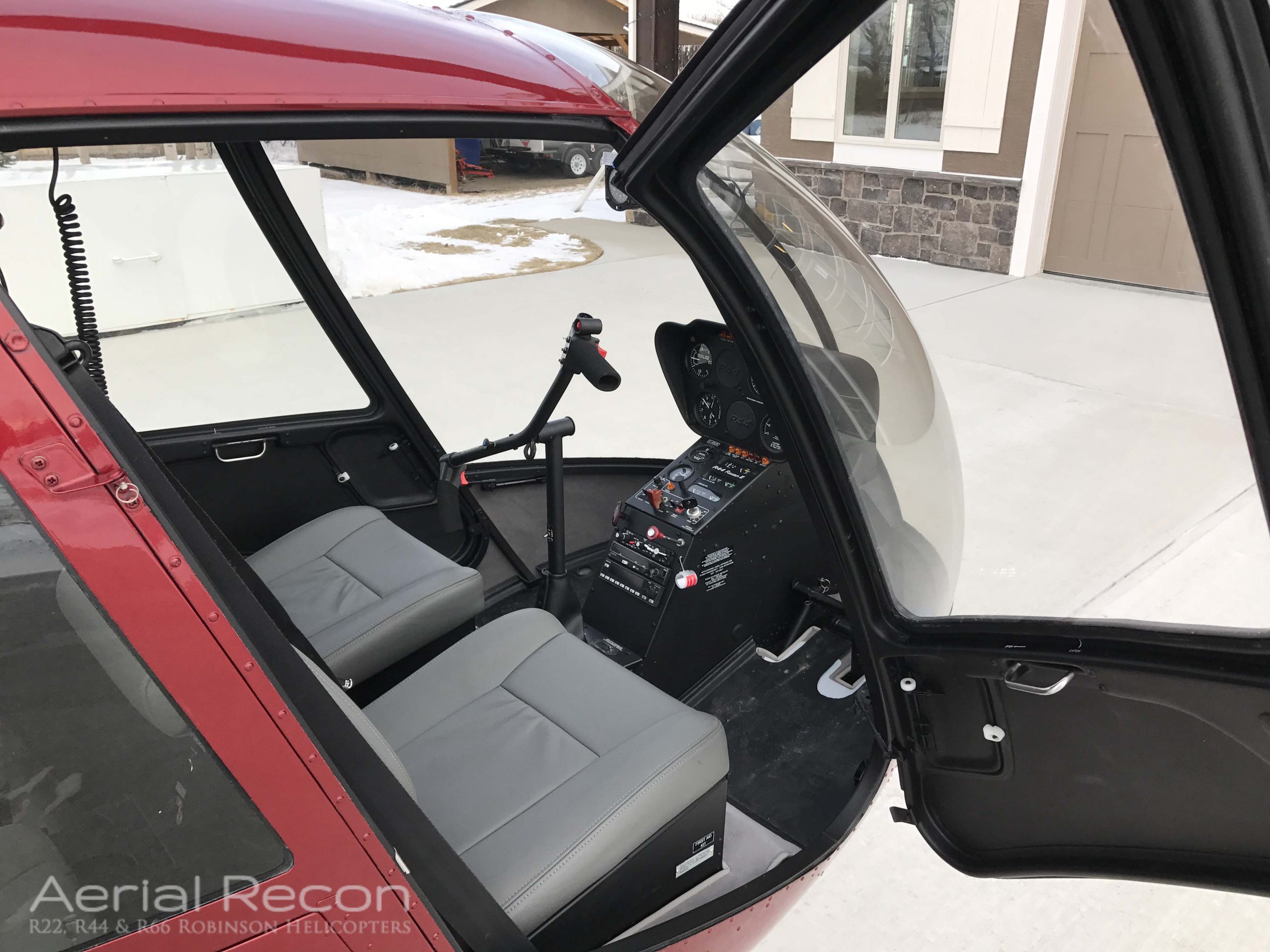

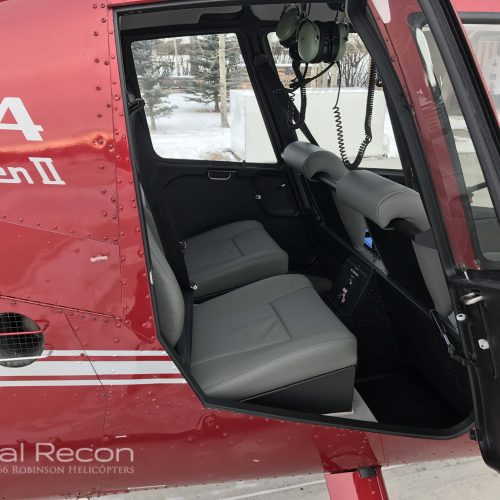

The interior has been completely updated as of Dec 2016, where new leather seats, new liners and headers were installed. It looks and feels like a new helicopter when you sit inside. The annual was completed on Dec 12th, 2016. Compression checks on the engine: 1)77 2)74 3)72 4) 79 5)79 6) 76

Each helicopter that comes out of the factory flies a little differently. This R44 is quicker than average by a few knots!

Fuel Bladders were installed when the last overhaul was completed on March 20th, 2014.

Time remaining: This helicopter has until March 20th, 2026 or until 4397.7 hours. That leaves over 9 years and approximately 770 hours until the next overhaul is required.

This is an excellent opportunity to own your own helicopter with significantly less upfront capital. Should the new owner decide, this helicopter would also fit very well within a commercial or lease operation.

More photos are available upon request.

This R44 is presently homed in Calgary and easily accessible for viewing. Let us know if you would like to book a demonstration of this helicopter.













Features

  • Red Metallic with Silver Trim Paint
  • New Grey Leather Seats(Installed Dec 2016)
  • New Interior(Installed Dec 2016)
  • HID Landing Lights
  • Forward Fire Extinguisher

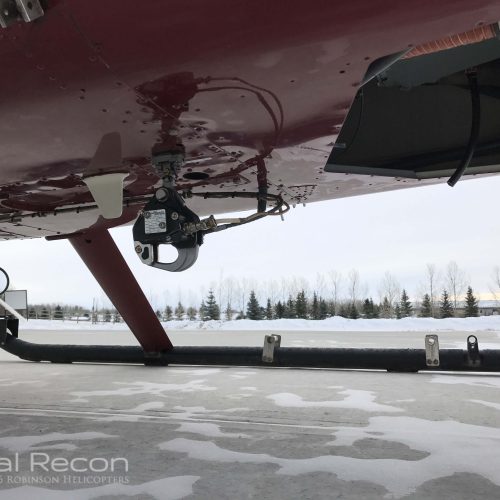

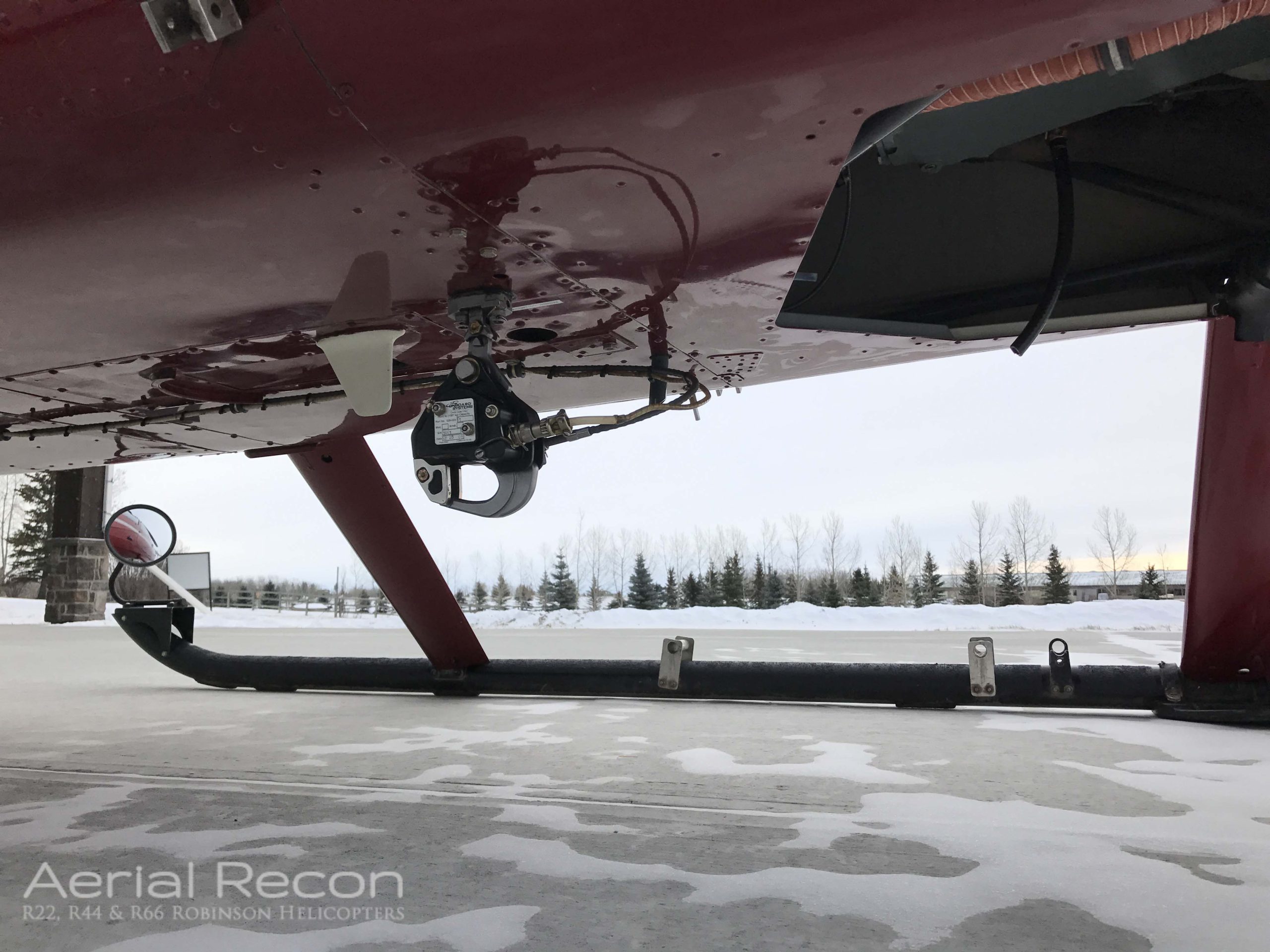

  • Cargo Hook-Talon
  • Cargo Mirror- Dart
  • Floor Trays – Dart
  • Bearpaws – Dart
  • Provisions for Cargo Pods – No pods included
  • 2 David Clarke Headphones
  • Cold Weather Baffles
  • Ground Handling Wheels
  • Dual Controls
  • Blade Tie-Downs
  • Note: Fuel bladders installed

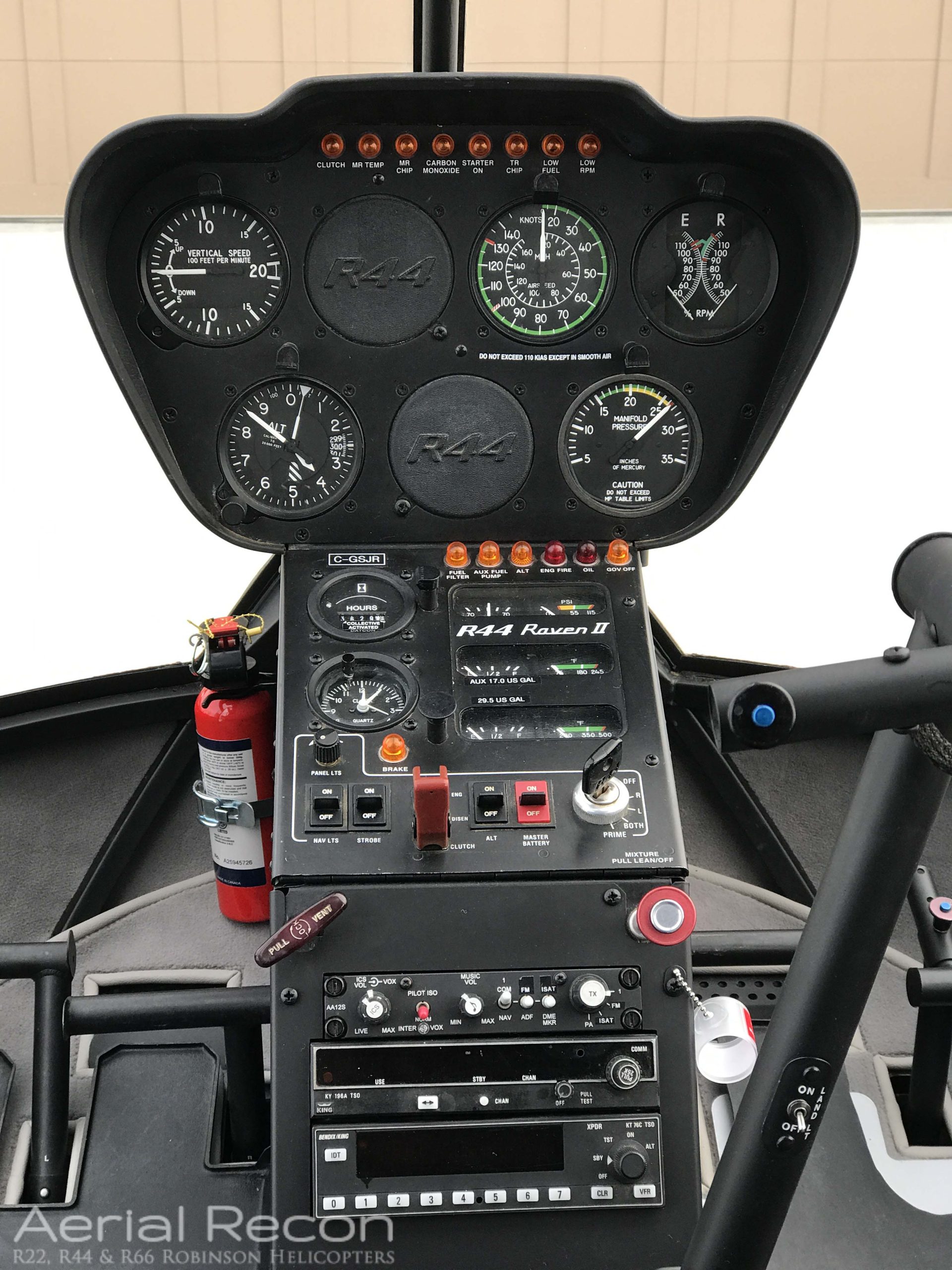

Avionics

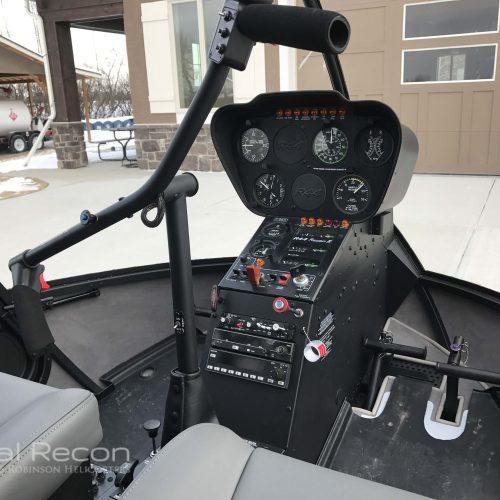

  • 7 Hole Panel
  • Nat 12 Audio Selector Panel
  • King 196A Transceiver
  • King KT76 Transponder with Mode C
  • Kannad 406 ELT

Technical

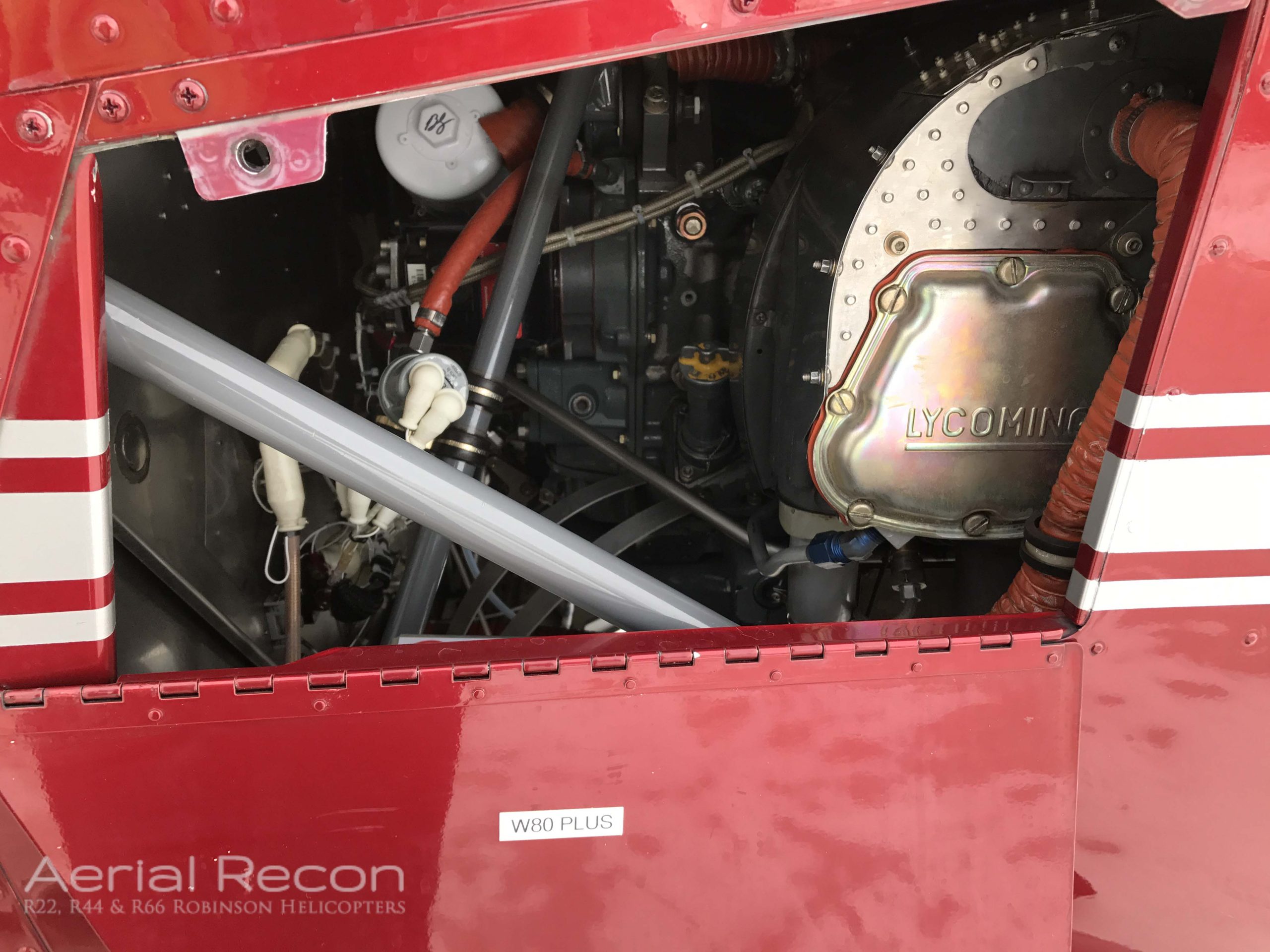

R44 Raven II helicopters are simple and enjoyable to fly. The R44 Raven Series Helicopters provide excellent reliability, responsive handling, and altitude performance, making the R44 the ideal helicopter for private, business, and utility applications. The high performance R44 Raven II has a Lycoming IO-540 fuel- injected, angle-valve, tuned-induction engine, which eliminates the need for carburetor heat.

R44’s are equipped with a two-bladed rotor system, which makes storing them inside significantly easier than a multi-blade system. The R44 has a 1 pilot + 3 passenger cabin configuration with unobstructed views from every seat.

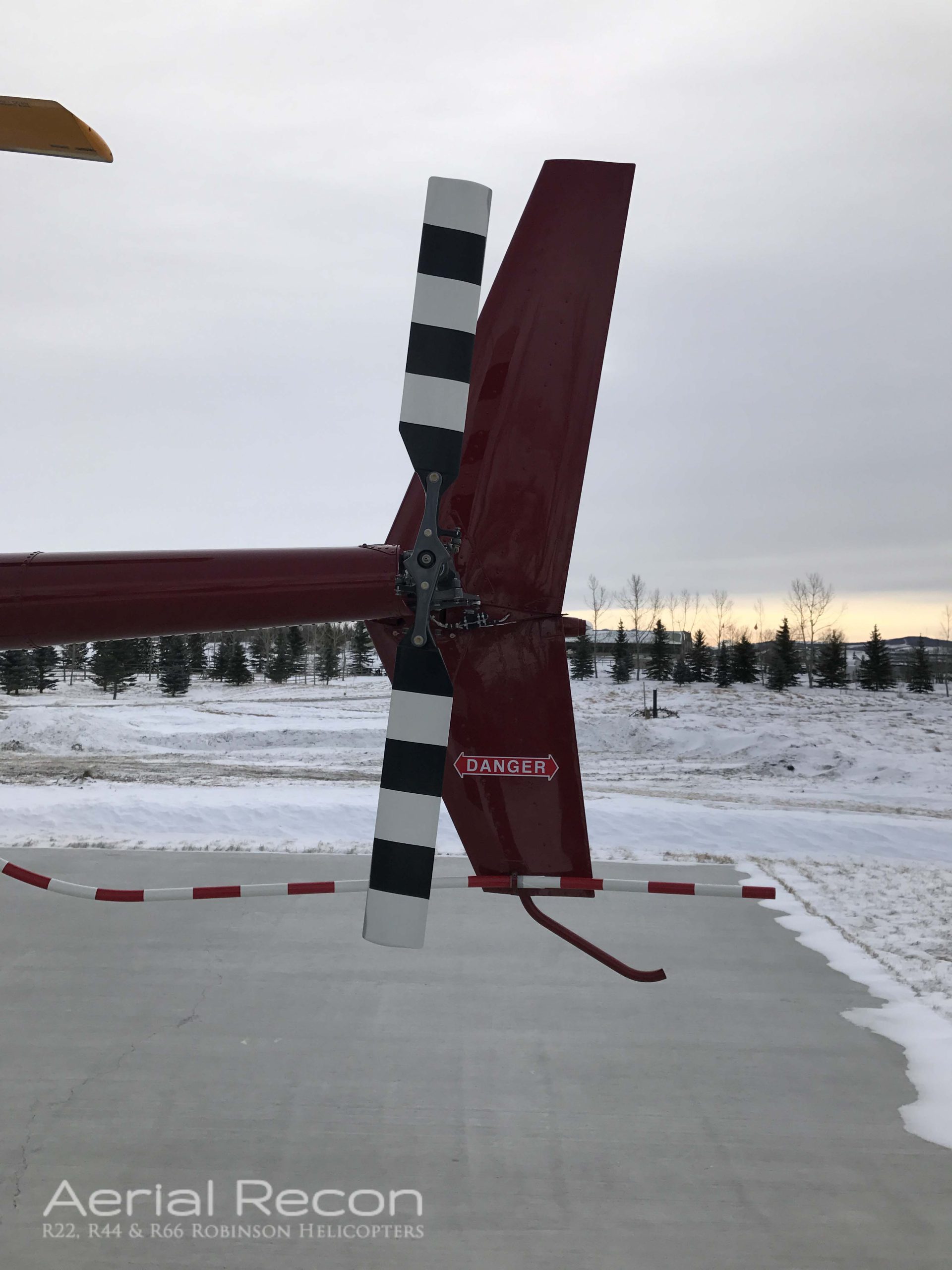

The lightweight airframe and aerodynamic fuselage optimize airspeed and fuel economy. The helicopters’ low tail-rotor tip speed, heavy-duty muffler, and large cambered tail reduce flyover noise.

In a complex aviation environment, Robinson has done an excellent job keeping this helicopter simple, economical and enjoyable.

Engine Type

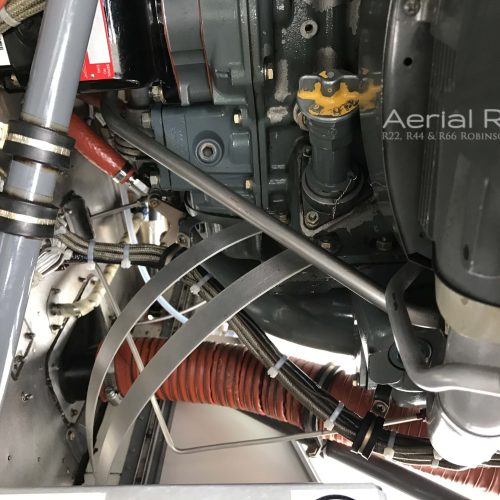

Lycoming IO-540, six cylinder, fuel injected

Horsepower

Derated to 245 for takeoff and 205 continuous

Maximum Gross Weight

2500 lb (1134 kg)

Approximate Empty Weight (including oil & std avionics)

1495 lb (678 kg)

Standard Fuel (29.5 gal)

177 lb (80 kg)

Auxiliary Fuel (17.0 gal)

102 lb (46 kg)

Passengers and Baggage with Standard Fuel

828 lb (376 kg)

Cruise Speed

up to 116 kts (135 mph)

Maximum Range (no reserve)

approx 300 nm (350 sm)

Hover Ceiling IGE at Gross Weight

8950 ft

Hover Ceiling OGE at 2300 lb

7500 ft

Rate of Climb

over 1000 fpm

Maximum Operating Altitude

14,000 ft

Electrical System

28 volt

Reduced Price:
SOLD

$
  • Year: 2006

  • Manufacturer: Robinson

  • Model: R44 Raven II

  • Serial Number: 11434

  • Total Time: 3632 1430 Since Overhaul

  • Condition: Used

  • Location: Calgary, AB, Canada

  • Engine: Lycoming IO 540

  • Exterior Color: Red

  • Interior Color: New Grey Leather
