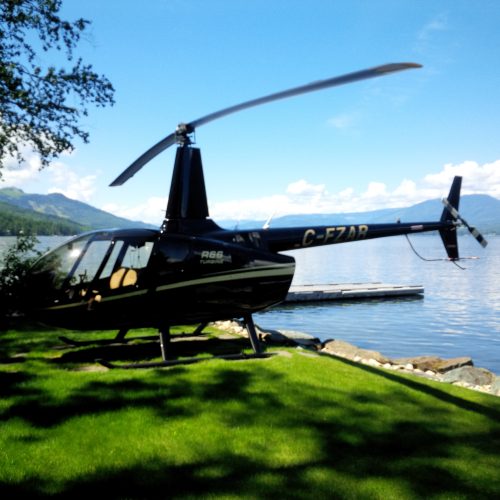

Robinson R66 Helicopter C-FZAR


$Call
  • Year: 2013

  • Manufacturer: Robinson Helicopter Company

  • Model: R66

  • Serial Number: 0372

  • Total Time: 1000

  • Condition: Used

  • Location: Bonnyville. AB

  • Engine: RR300

  • Exterior Color: Metallic Black. Metallic Gold Trim

  • Interior Color: Tan Leather


Overview

<SOLD>New to the market is a beautiful 2013 Robinson R66 helicopter.  The maintenance has been meticulous and this helicopter has been gently flown.  This helicopter was manufactured in June 2013.  The buyer of this helicopter will have 1000 hours for the overhaul or until 2025 to complete the 12 year.

Let us know if you have any questions and if there is anything we can do to help you out.

Aerial Recon Ltd. is a Robinson Dealer and has been in business since 1985. We have a wealth of experience and make sure we help both the seller and buyer through the process from start to finish. We have sold Robinson’s across North and South America as well as overseas.

Features

  • Air Conditioning
  • Heated Pitot Tube
  • Fire Extinguisher
  • Vertical Card Compass
  • 7 Hole Panel
  • Ground Handling Wheels
  • Dual Controls
  • HID landing lights
  • RG 325 battery
  • Rear Center Console
  • Bose Interface
  • Blade Tie Downs
  • Dart Floor Trays
  • Extended Cabin Cover

Avionics

  • Artificial Horizon
  • Turn Co-ordinator
  • BendixKing KY-196 Com
  • ELT- Kannad 406
  • Nat 12 Audio Controller

Technical

Since 2010 the 5 seat R66 has quickly become a top-selling turbine helicopter. It is economical, reliable and kept simple by design. With over 1000 units sold, this helicopter has proven itself in a challenging market. The R66 is powered by the robust and reliable Rolls Royce RR300 turboshaft engine which is a slightly modified version of the Allison 250-C20B engine that has been around since 1958 with over 30,000 units produced.

With a comfortable cabin size, large rear cargo bay, impressive performance and tail rotor authority, the R66 is in a class by itself. The performance of the R66 is impressive. We personally have taken off at 21 deg C with 4 (200 lb) people and a full tank (3 hours of fuel). Not too many aircraft manufacturers build aircraft that can take off and perform at max weight. We have also landed at 13,000 feet with 3 adult males and 3/4 tank of fuel with plenty of power reserve. Bell Jet Rangers and Ec 120s will not be able to come close to the R66 when it comes to operating costs and performance.

Robinson kept the systems simple and easy to maintain. Inspections are performed every 100 hours and annually. Overhaul schedule is every 12 years or 2000 hours whichever comes first. There are worldwide support for maintenance and Aerial Recon is always here to assist our clients.

Specifications & Dimensions

Helicopter R66 Turbine
Engine Rolls Royce RR300 Turbine
Horsepower 300 shp turboshaft; derated to 270 shp for takeoff and 224 shp continuous
Maximum Gross Weight 2700 lb (1225 kg)
Approximate Empty Weight (including oil & standard avionics) 1280 lb (581 kg)
Fuel Capacity (73.6 gal) 493 lb (224 kg)
Pilot, Passengers, and Baggage (with maximum fuel) 927 lb (420 kg)
Cruise Speed at Maximum Gross Weight up to 110 kts (204 km/h)
Maximum Range (no reserve) approximately 350 nm (650 km)
Hover Ceiling IGE at Maximum Gross Weight over 10,000 ft
Hover Ceiling OGE at Maximum Gross Weight over 10,000 ft
Rate of Climb over 1000 fpm
Maximum Operating Altitude 14,000 ft
Electrical System 28 volt
