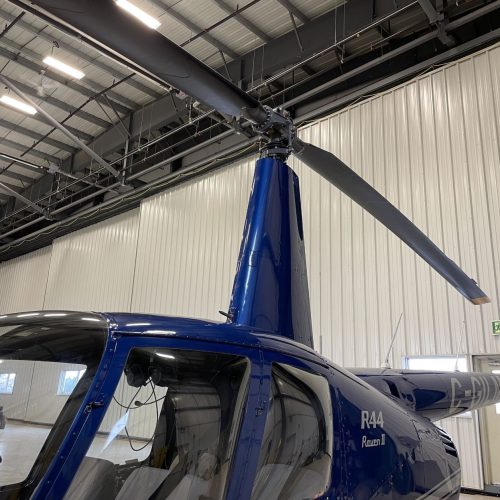

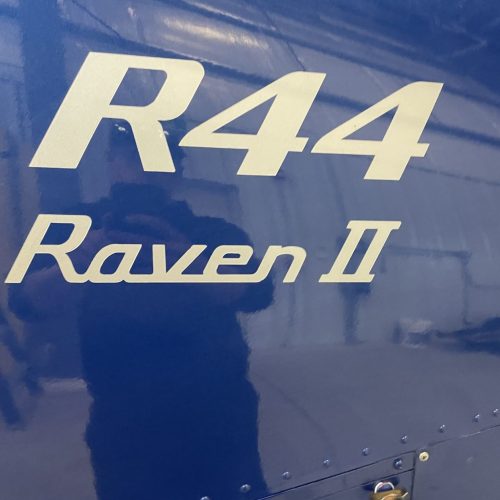

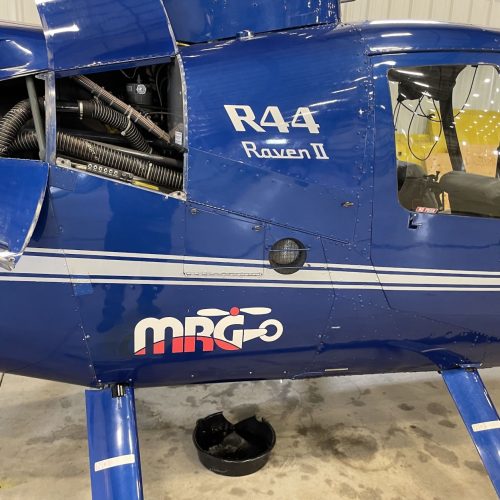

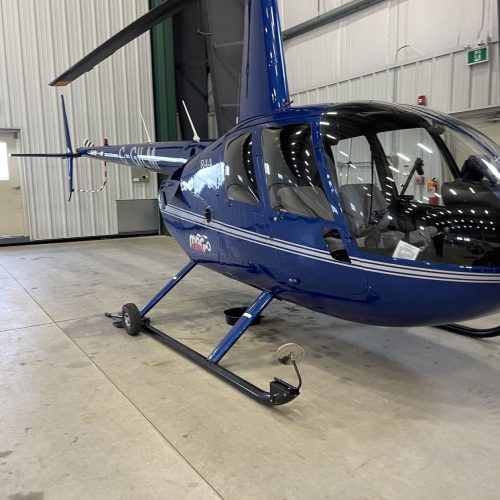

R44 Raven II 2005 C-GILM


$220,000 USD
  • Year: 2005

  • Manufacturer: Robinson Helicopter Company

  • Model: R44 Raven II

  • Serial Number: 10831

  • Total Time: 3872.1

  • Condition: Used

  • Location: North Bay, Ontario

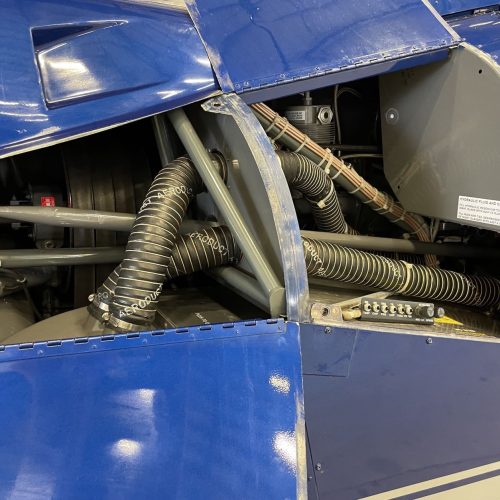

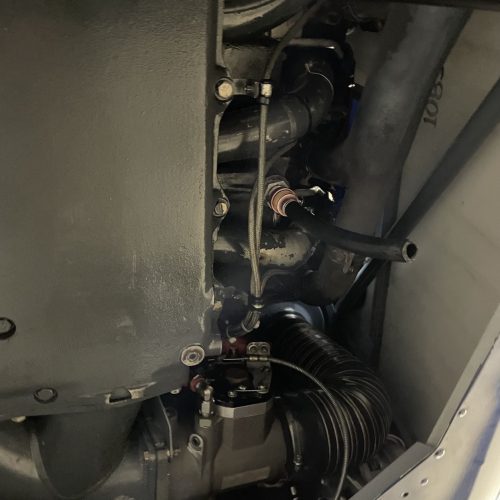

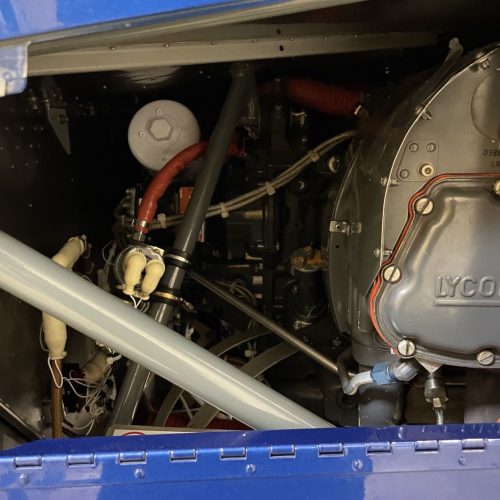

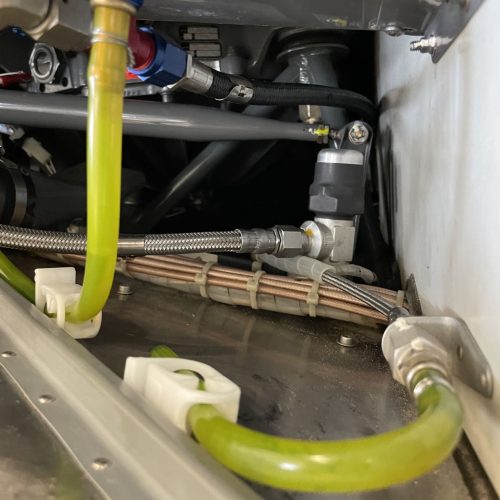

  • Engine: Lycoming IO-540, six cylinder, fuel injected

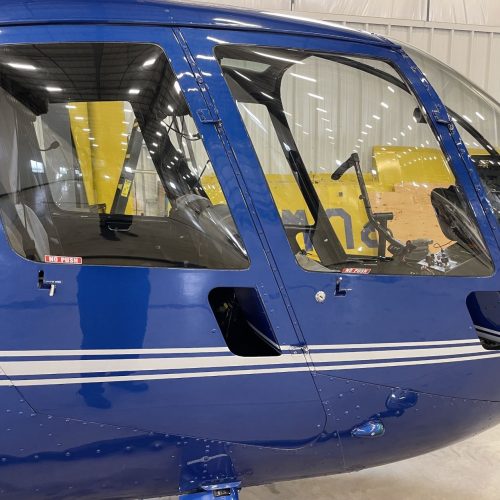

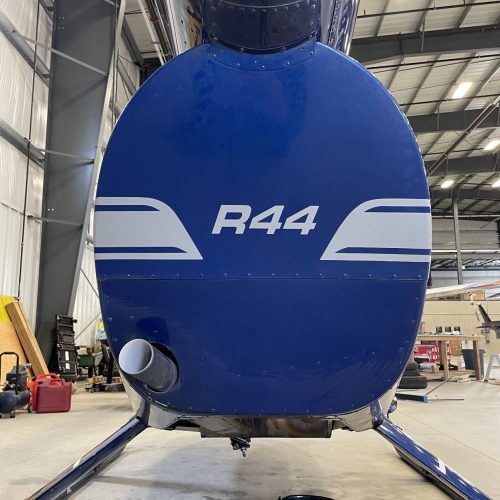

  • Exterior Color: Blue with Silver Trim

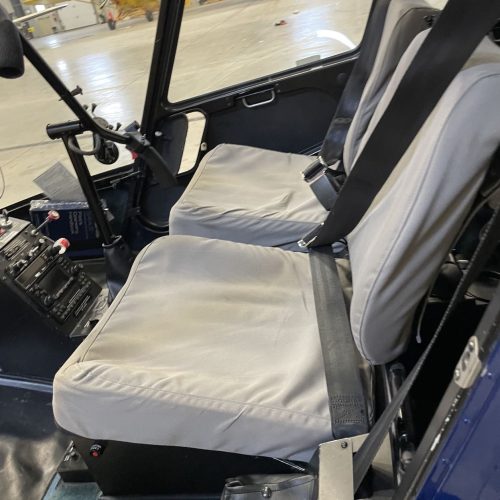

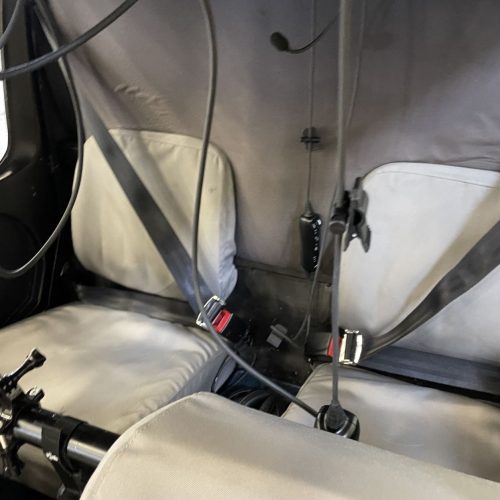

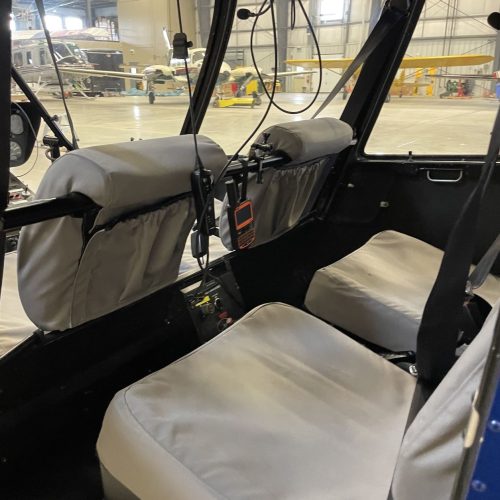

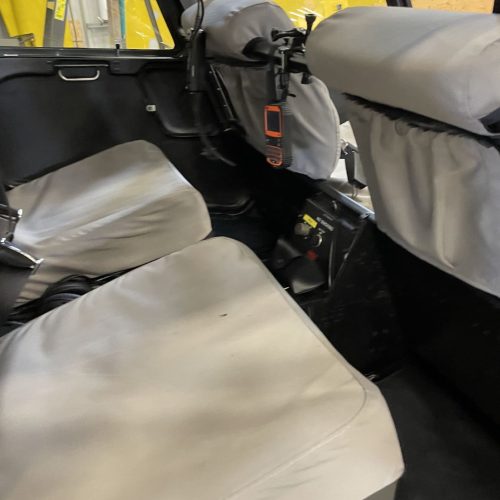

  • Interior Color: Blue Velour with Grey Fabric covers


Overview

Accepted Offer and set to close Feb/March 2022.

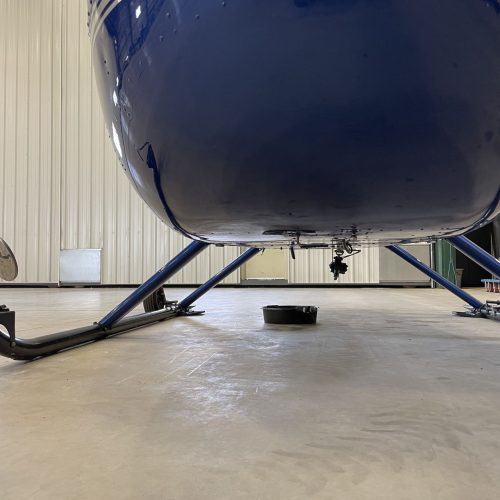

The aircraft is equipped for utility work and will work well for a commercial or private buyer.  The helicopter comes with a cargo hook and one external pod.

It is located in North Bay, Ontario, Canada. Currently, there are very few good helicopters on the market due to the demand. Don’t hesitate to contact us as it will not last long.

Overhaul Details:

Date of overhaul: Jan 15, 2014
12 year due: 2026
Hours until next 2200 hour overhaul: 525.3 Hours per year remaining: 131 hours per year

Features

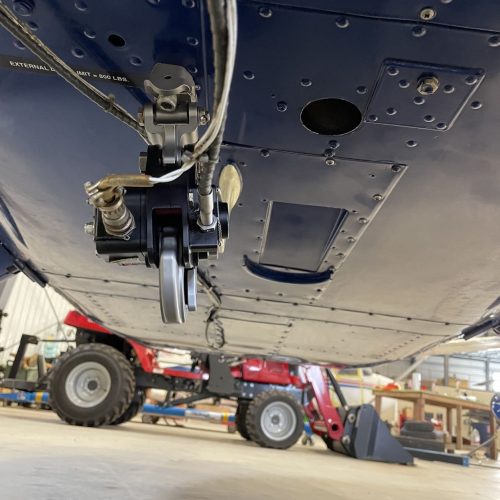

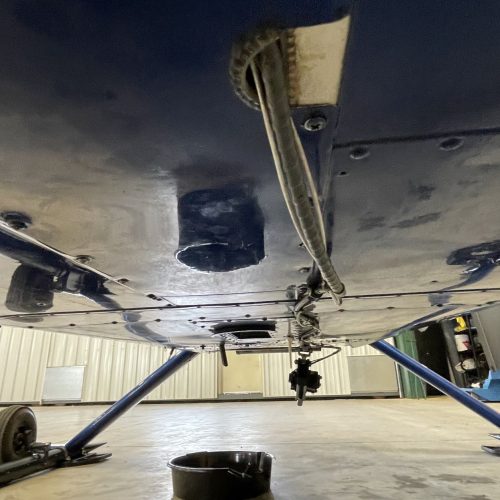

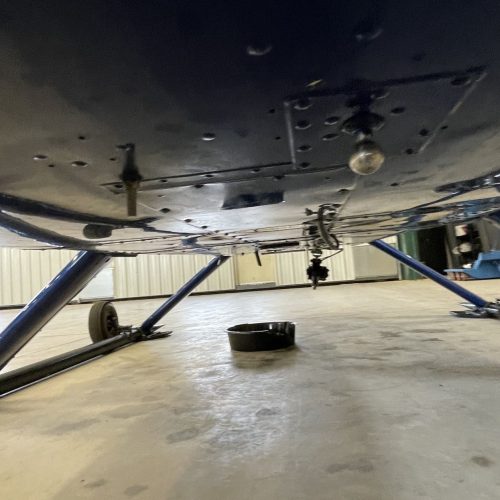

  • Cargo Hook

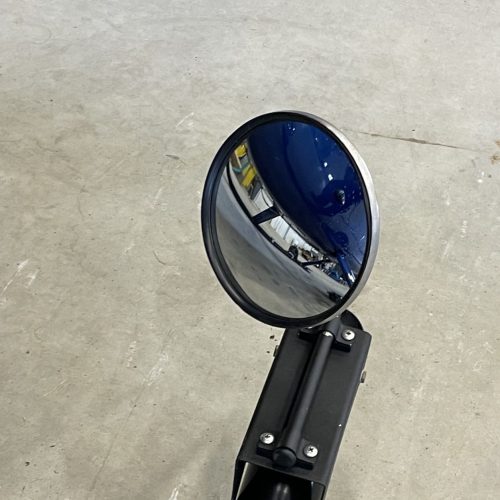

  • Cargo Mirror
  • Matching Heli pod
  • Digital Chrono with 2 USB chargers

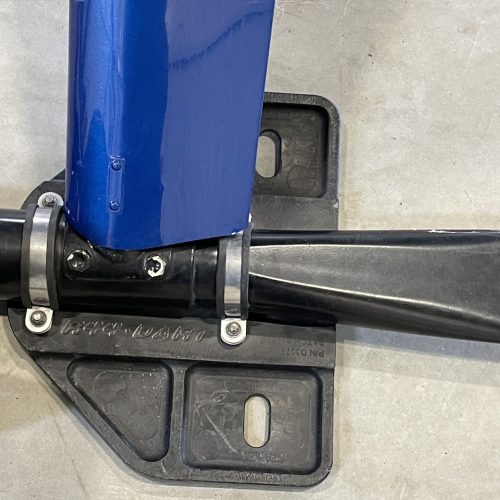

  • Bear Paws

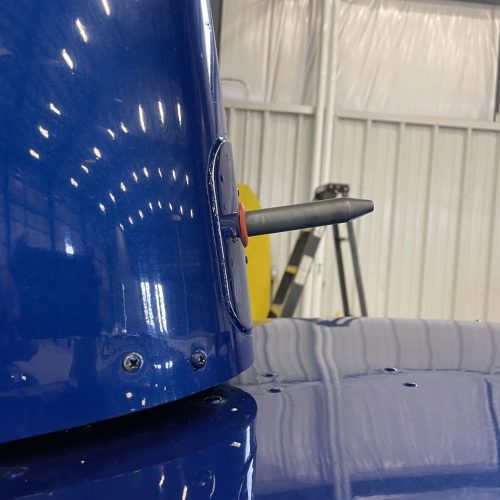

  • Heated Pitot Tube
  • Winter Covers. Engine, Main Rotors and Tail Blade

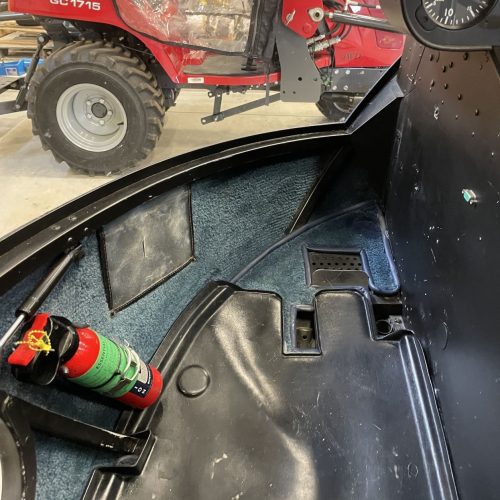

  • Floor Trays

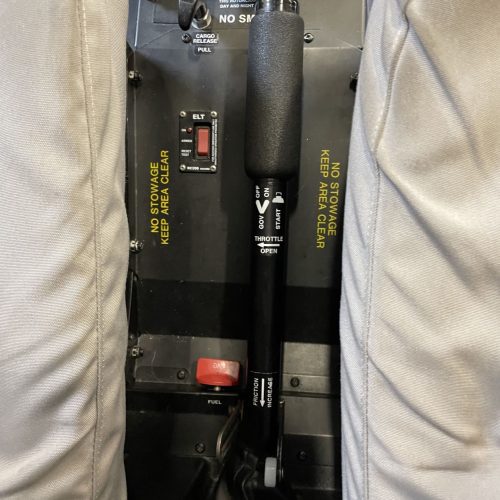

  • Dual Controls
  • Blade Tie Downs

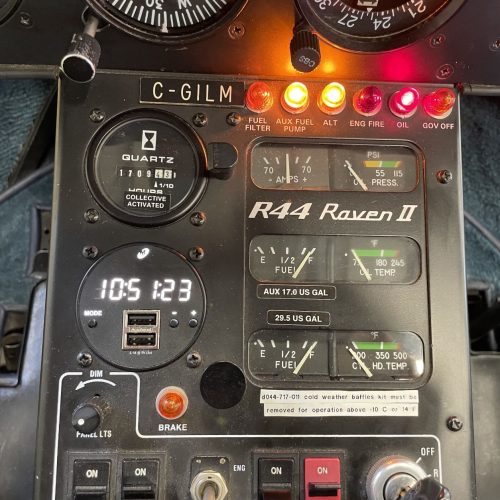

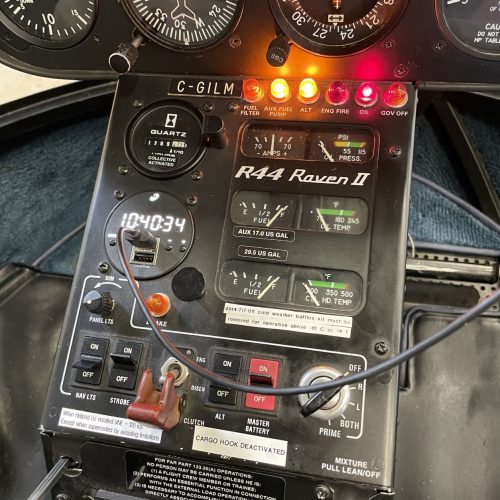

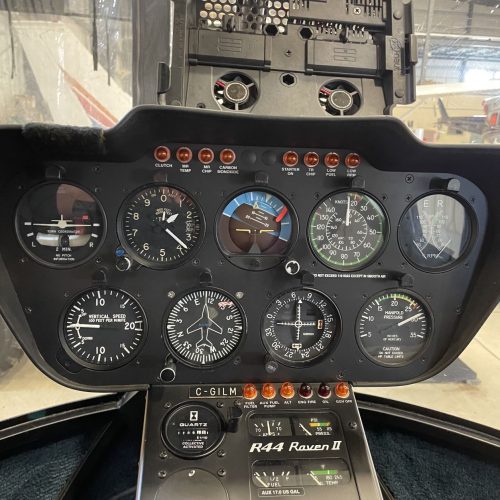

Avionics

  • 9 Hole Panel
  • Garmin 430 GPS/COM
  • Artificial Horizon
  • Directional Gyro
  • Turn Co-ordinator
  • CDI
  • King 196 COM
  • Kannad 406 ELT
  • Nat 12 Audion Controller

Technical

Specifications & Dimensions



Helicopter R44 Raven II
Engine Lycoming IO-540, six cylinder, fuel injected
Horsepower Derated to 245 for takeoff and
205 continuous
Maximum Gross Weight 2500 lb (1134 kg)
Empty Weight of Standard R44 II (including oil & standard avionics) 1535 lb (683 kg)
Standard Fuel (29.5 gal) 177 lb (80 kg)
Auxiliary Fuel (17.0 gal) 102 lb (46 kg)
Pilot, Passengers, and Baggage (with standard fuel) 818 lb (371 kg)
Cruise Speed at Maximum Gross Weight up to 109 kts (202 km/h)
Maximum Range (no reserve) approx 300 nm (550 km)
Hover Ceiling IGE 8950 ft @ 2500 lb
Hover Ceiling OGE 7500 ft @ 2300 lb
Rate of Climb over 1000 fpm
Maximum Operating Altitude 14,000 ft
Electrical System 28 volt
