Overview

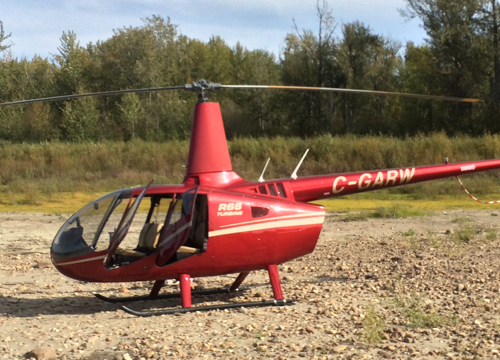

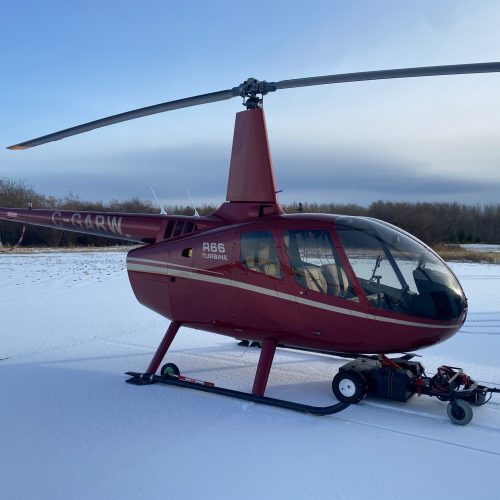

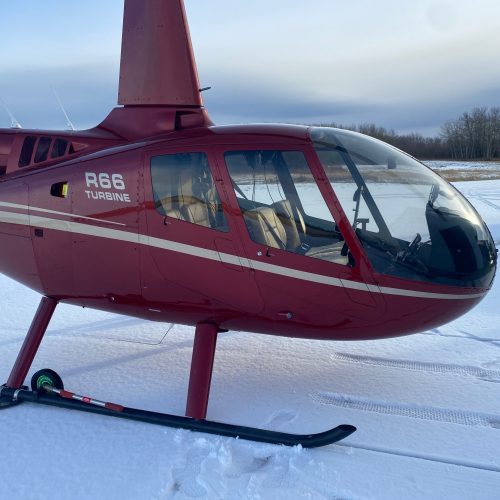

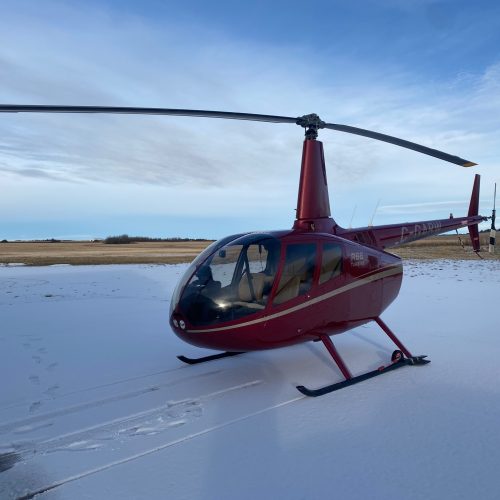

Now available is an R66 helicopter that has great times remaining.  This 2013 R66 was manufactured in June of 2013 and has 868 hours remaining.  This makes for approx. 200 hours per year remaining.  Maintenance has been performed at a commercial standard and will be sold with all AD’s and SB’s up to date.





Features

  • Air Conditioning
  • Heated Pitot Tube
  • Fire Extinguisher
  • Vertical Card Compass
  • 9 Hole Panel
  • Windshield Cabin Cover
  • Blade Tie Downs
  • Bose Interface
  • Rear Utility Console
  • Dual Controls
  • Ground Handling Wheels
  • Cargo Bay Liner

Avionics

  • Garmin 796 in pilot side console
  • Artificial Horizon
  • Directional Gyro
  • Turn Coordinator
  • Bendix King KY-196 Com
  • ELT- Kannad 406
  • Garmin GTX Mode C Transponder

Technical

Since 2010 the 5 seat R66 has quickly become a top-selling turbine helicopter. It is economical, reliable and kept simple by design. With over 1000 units sold, this helicopter has proven itself in a challenging market. The R66 is powered by the robust and reliable Rolls Royce RR300 turboshaft engine which is a slightly modified version of the Allison 250-C20B engine that has been around since 1958 with over 30,000 units produced.

With a comfortable cabin size, large rear cargo bay, impressive performance and tail rotor authority, the R66 is in a class by itself. The performance of the R66 is impressive. We personally have taken off at 21 deg C with 4 (200 lb) people and a full tank (3 hours of fuel). Not too many aircraft manufacturers build aircraft that can take off and perform at max weight. We have also landed at 13,000 feet with 3 adult males and 3/4 tank of fuel with plenty of power reserve. Bell Jet Rangers and Ec 120s will not be able to come close to the R66 when it comes to operating costs and performance.

Robinson kept the systems simple and easy to maintain. Inspections are performed every 100 hours and annually. Overhaul schedule is every 12 years or 2000 hours whichever comes first. There are worldwide support for maintenance and Aerial Recon is always here to assist our clients.

Specifications & Dimensions

Helicopter R66 Turbine
Engine Rolls Royce RR300 Turbine
Horsepower 300 shp turboshaft; derated to 270 shp for takeoff and 224 shp continuous
Maximum Gross Weight 2700 lb (1225 kg)
Approximate Empty Weight (including oil & standard avionics) 1280 lb (581 kg)
Fuel Capacity (73.6 gal) 493 lb (224 kg)
Pilot, Passengers, and Baggage (with maximum fuel) 927 lb (420 kg)
Cruise Speed at Maximum Gross Weight up to 110 kts (204 km/h)
Maximum Range (no reserve) approximately 350 nm (650 km)
Hover Ceiling IGE at Maximum Gross Weight over 10,000 ft
Hover Ceiling OGE at Maximum Gross Weight over 10,000 ft
Rate of Climb over 1000 fpm
Maximum Operating Altitude 14,000 ft
Electrical System 28 volt
Reduced Price:
NEW

$589900
  • Year: 2013

  • Manufacturer: Robinson Helicopter Company

  • Model: R66

  • Serial Number: 0393

  • Total Time: 1142 hours total

  • Condition: Used

  • Location: Grande Prarie

  • Engine: RR300

  • Exterior Color: Volcano Red Pearl Metallic

  • Interior Color: Tan Leather
