Price Reduced! Now available is a great looking 2003 R44 Raven II. New carpets and headliner were installed in Sept. 2018. The annual was completed on April 30th, 2019.
The first overhaul was completed in 2010, making the 12 year due in 2022. It is currently 95 hours away from the second overhaul. This would be a great aircraft to get some inexpensive flying in and then look to sell the core or rebuild it and have another 12 years of 2200 hours of flying.
-5 main rotor blades
-No fuel bladders installed.
-New tail rotor blades + pitch links t installed in June of 2016 at 4078 hours.
-Full logs since new.
- Windshield Cabin Cover
- Blade Tie Downs
- David Clark Headsets
- Vertical Compass Card
- Digital Clock
- Bubble Windows
- Dual Controls
- Ground Handling Wheels

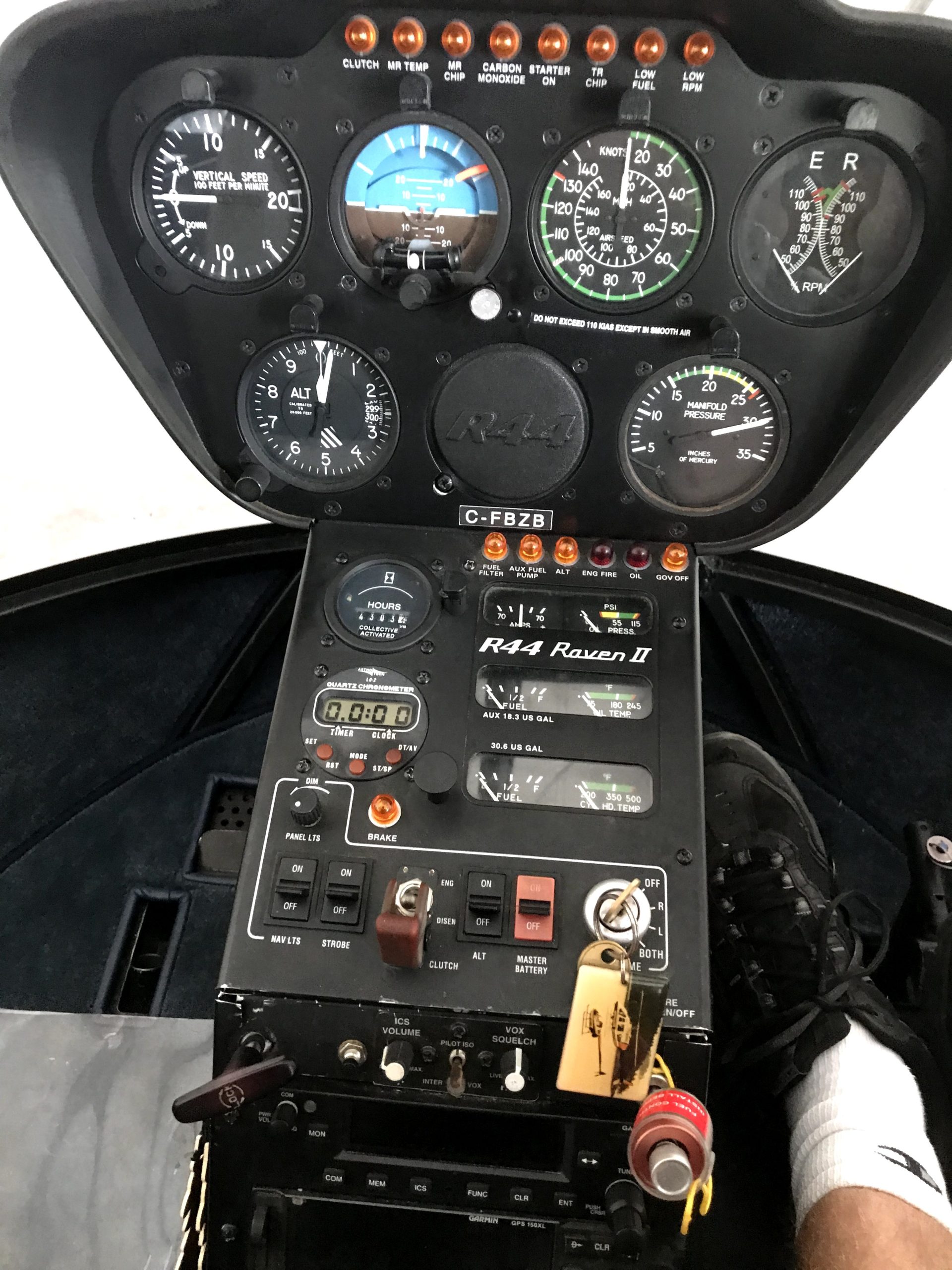

- 7 Hole Panel
- Artificial Horizon
- Garmin 150 XL GPS In Center Console
- Garmin GTR 225 Com Radio
- Kannad 406 ELT
- Transponder KT-76 Mode C
- Technisonic VHF FM Radio COM
Specifications & Dimensions
|Helicopter||R44 Raven II|
|Engine||Lycoming IO-540, six cylinder, fuel injected|
|Horsepower||Derated to 245 for takeoff and
|Maximum Gross Weight||2500 lb (1134 kg)|
|Approximate Empty Weight (including oil & standard avionics)||1505 lb (683 kg)|
|Standard Fuel (29.5 gal)||177 lb (80 kg)|
|Auxiliary Fuel (17.0 gal)||102 lb (46 kg)|
|Pilot, Passengers, and Baggage (with standard fuel)||818 lb (371 kg)|
|Cruise Speed at Maximum Gross Weight||up to 109 kts (202 km/h)|
|Maximum Range (no reserve)||approx 300 nm (550 km)|
|Hover Ceiling IGE||8950 ft @ 2500 lb|
|Hover Ceiling OGE||7500 ft @ 2300 lb|
|Rate of Climb||over 1000 fpm|
|Maximum Operating Altitude||14,000 ft|
|Electrical System||28 volt|
